8 Replace the input drive belt (Removed in step7) over the smaller side of the step up pulley.
9 Place a belt gauge on the drive input belt as shown below. The drive belt needs to be the first belt that
is tensioned (prior to tensioning the generator belt).
10 Adjust the Input and Generator pulley tension. Go to "Inspecting and Adjusting the Generator Belt
Tension" procedure.
11 Lift the stairarms and then thread the flat belts over the flat belt pulleys.
12 Select the QUICKSTART program and adjust the resistance up ▲ key until resistance level 10 is
displayed. Pedal the AMT for approximately one minute and then recheck the belt tension.

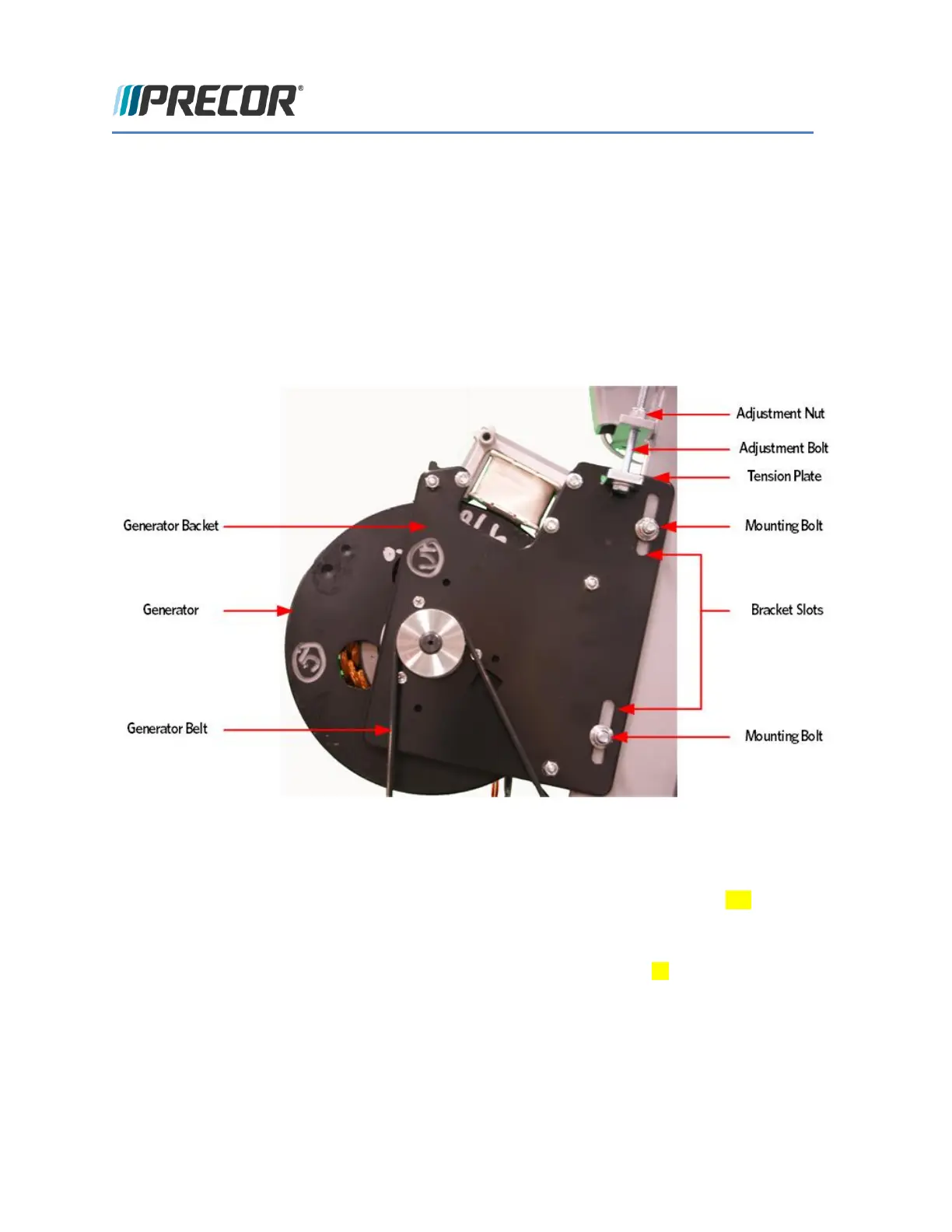

FIGURE 154: GENERATOR
13 The drive input belt tension should read approximately 120 ± 10 lbs and the generator belt tension
should read approximately 90 ± 10 lbs. See Drive Belt Gauge Instructions (on page 265) for attaining
maximum accuracy from the gauge.
14 Lift the stairarms and thread the flat belts through the pulleys.
15 Replace the covers as per procedure, Cover Replacement (on page 53) for attaining maximum
accuracy from the gauge.
