Upper Arm Cam Cover Replacement
1 Slide the vertical handlebar boot cover up the handlebar to gain access to the upper arm cam cover
screws.
2 Remove the two screws that secure the upper arm cam covers to the upper arm, remove the covers.
3 Secure the replacement upper arm cam covers to the upper arm using the two screws removed in step
2.

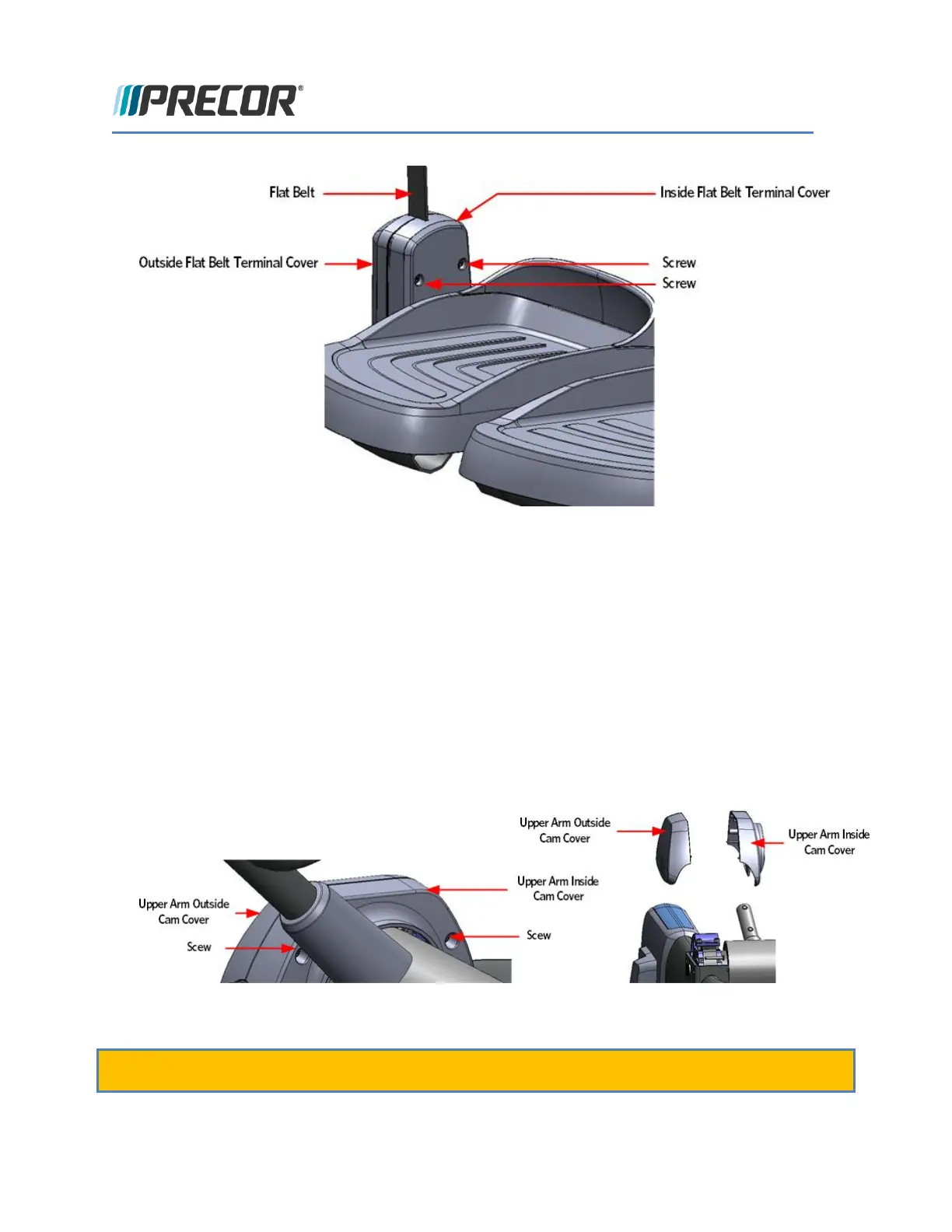

FIGURE 19: UPPER ARM CAM COVERS
Top Cover Assembly
Important: In the following steps, do not apply excessive force to seat the cover.
1 Position the rear edge of the top cover so that the clips on the top and back covers are engaged securely.
