© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 232

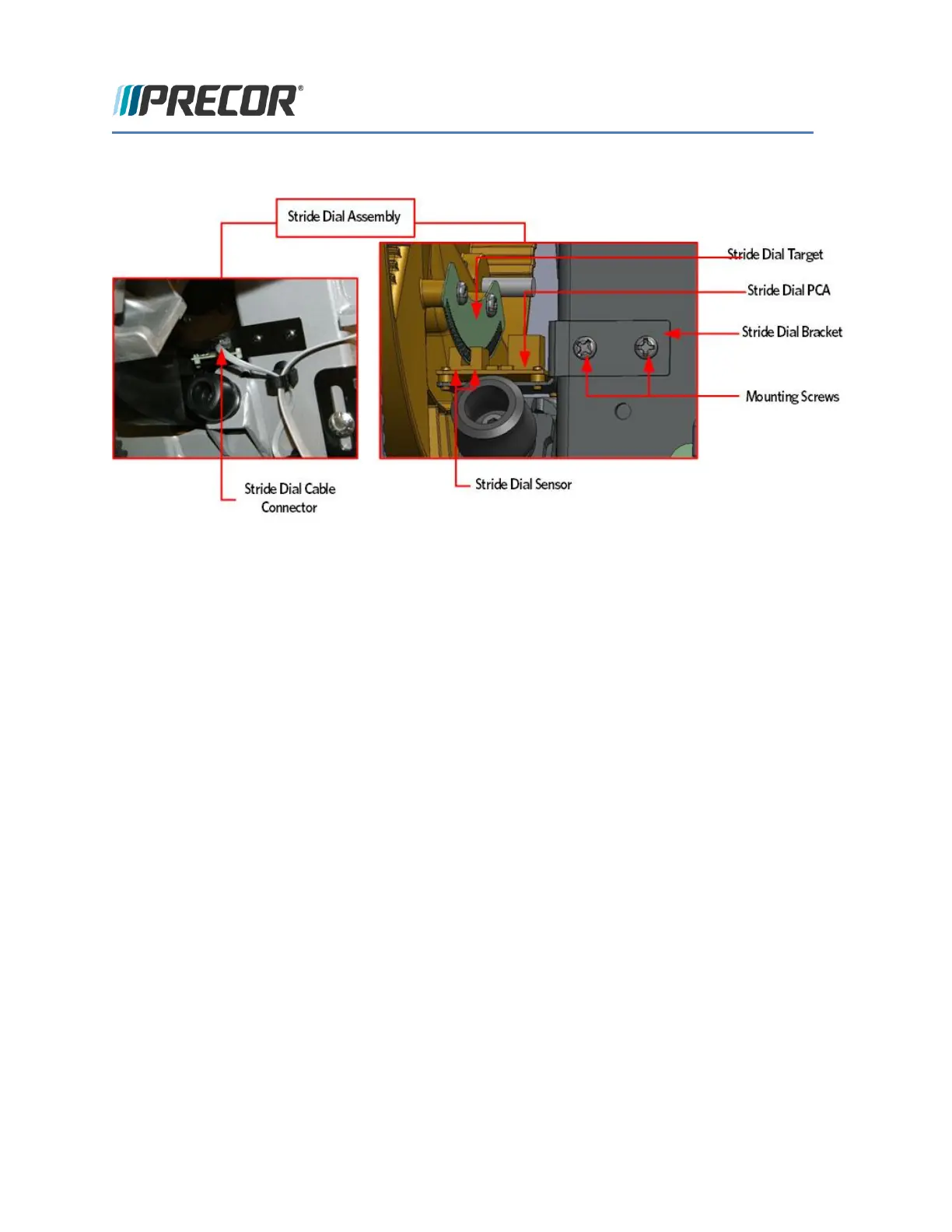

FIGURE 232: STRIDE DIAL ASSEMBLY
H-Brake Belt Installation
15 Apply a thin layer of AMSOIL GPOR1 synthetic polymeric grease along the cam clamp track.
16 Position one of the belt clamps over the cam so that the length of the belt is hanging down the left side
of the AMT and then slide the clamp onto the cam from right to left, until clamp hits the stop.
17 Feed the belt through the frame and under the H-brake pulley.
18 Slide the clamp onto the cam and fasten the clamps together using the H-Brake tension bolt, washers
and nut.
H-Brake Belt Tensioning
19 Place a belt gauge on the H-brake belt.
