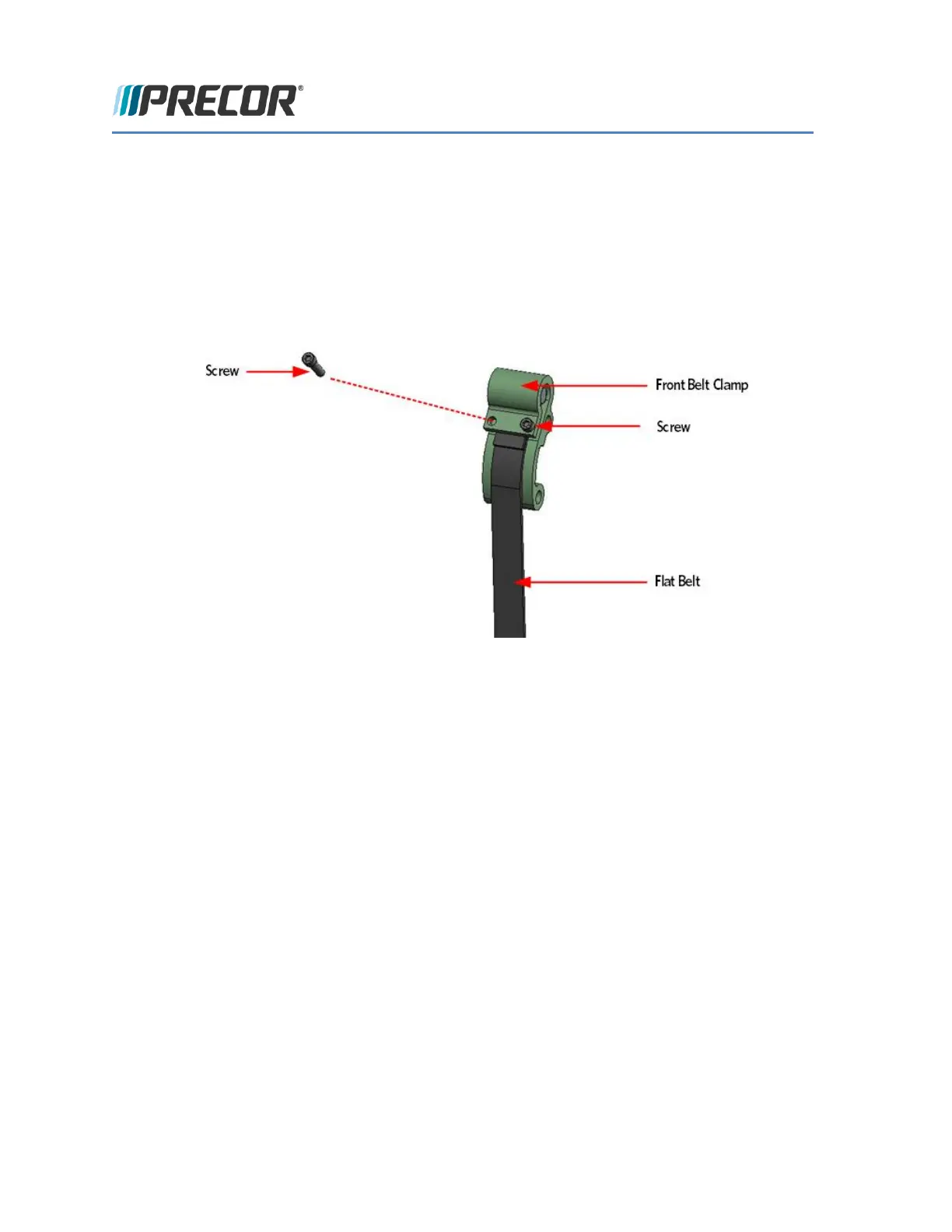

FIGURE 60: FRONT BELT CLAMP SCREW REMOVAL
7 Using a screwdriver tip, push out the pin from the flat belt loop and clamp and then slide the flat belt out
of the clamp.
Upper Arm Cam Cover Removal
8 Remove the two #10-24X1.25 screws that secure the upper arm cam covers to the upper arm, then
remove the covers. It may be necessary to adjust the position of the vertical handlebar to gain access
to the upper arm cam cover screws.
FIGURE 61: UPPER ARM CAM COVERS
