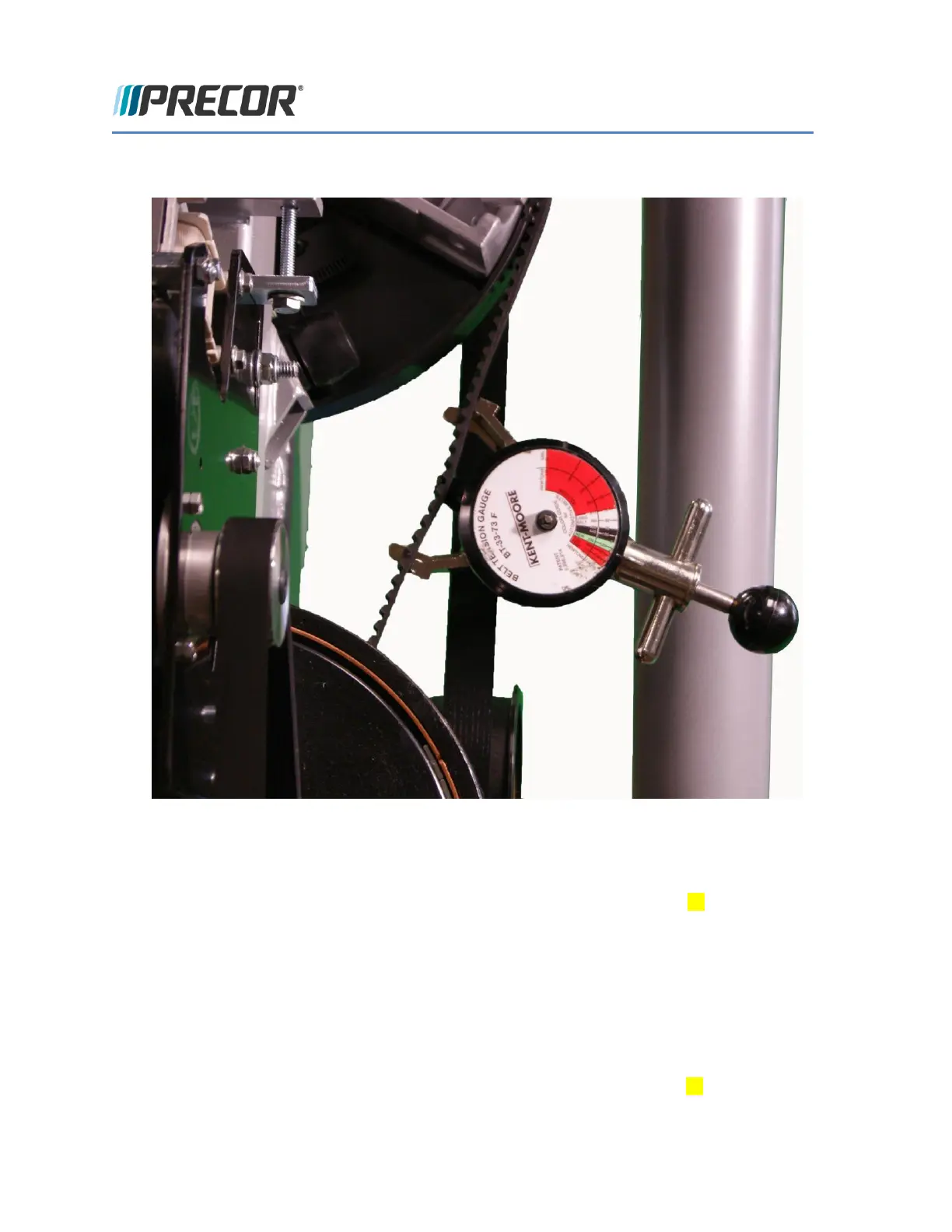

FIGURE 233: H-BRAKE BELT TENSION GAUGE
20 The belt gauge should read approximately 110-120 lbs. If the belt tension is significantly high or low the
belt tension may be adjusted by loosening or tightening the H-Brake adjustment bolt.
21 Replace the covers as described per procedure, Cover Replacement (on page 53).
Replacing the H-Brake Drum Assembly
Procedure
1 Remove the covers as described per procedure, Cover Replacement (on page 53).
