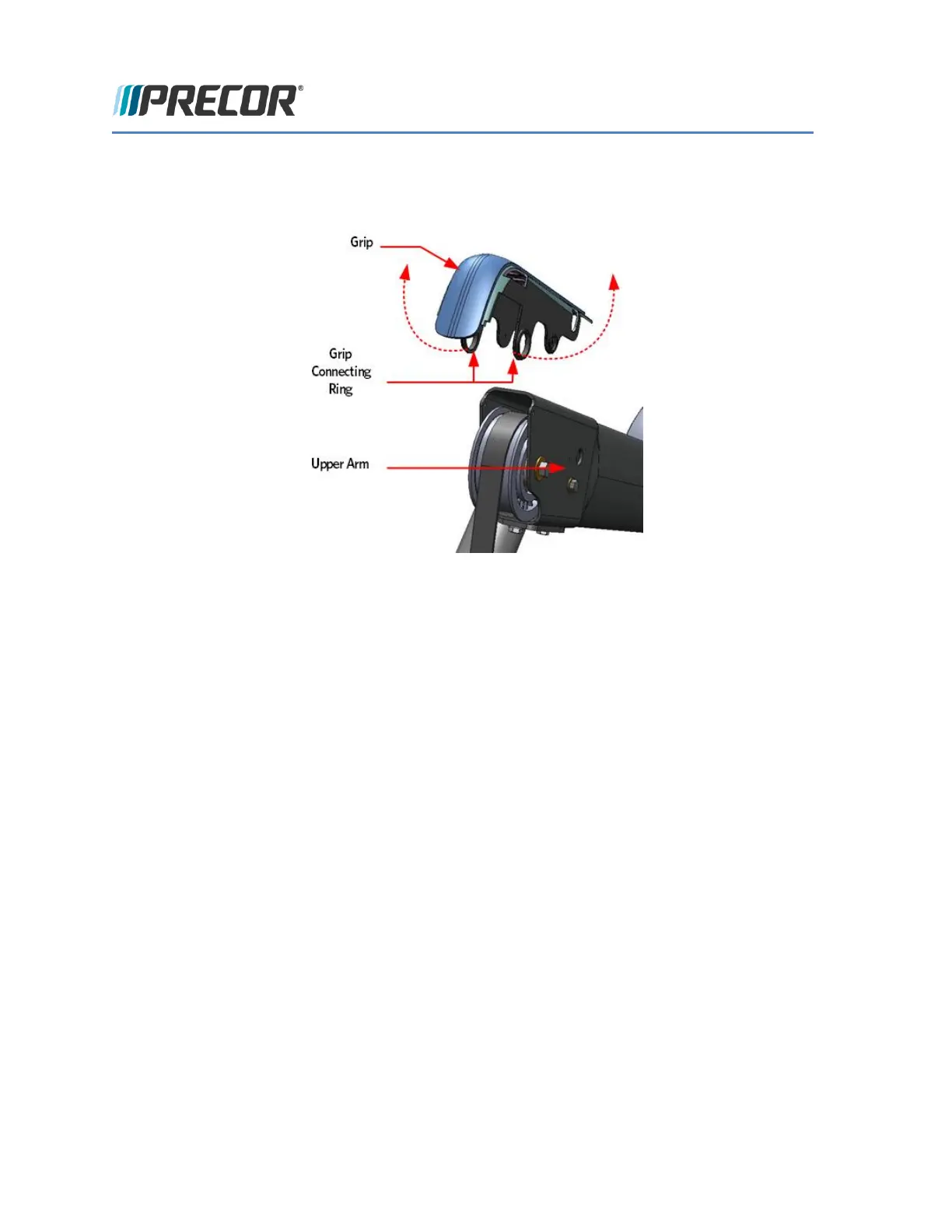

FIGURE 31: UPPER ARM GRIP REMOVAL
Upper Arm Grip Installation
10 Grasp the grip connecting ring located on each side of the upper arm grip, pull out and place the grip
over the flat belt pulley mounting bolt.
11 Secure the upper arm grip to the upper arm using the two #10-24X.75 screws.
Repeat the process for the remaining upper arm grip.
Belt Guard Installation
12 Place the two halves of the belt guard so they are positioned around the flat belt just below the upper
arm. The smaller half should be positioned so that the interlocking tabs are pointing toward the front of
the machine, and the guard toward the back. The larger half should be positioned with the guard toward
the front. Align the interlocking tabs of the smaller half with the slots of the larger half; rotate the halves
together around the flat belt until the locking tabs are locked.
