© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 185

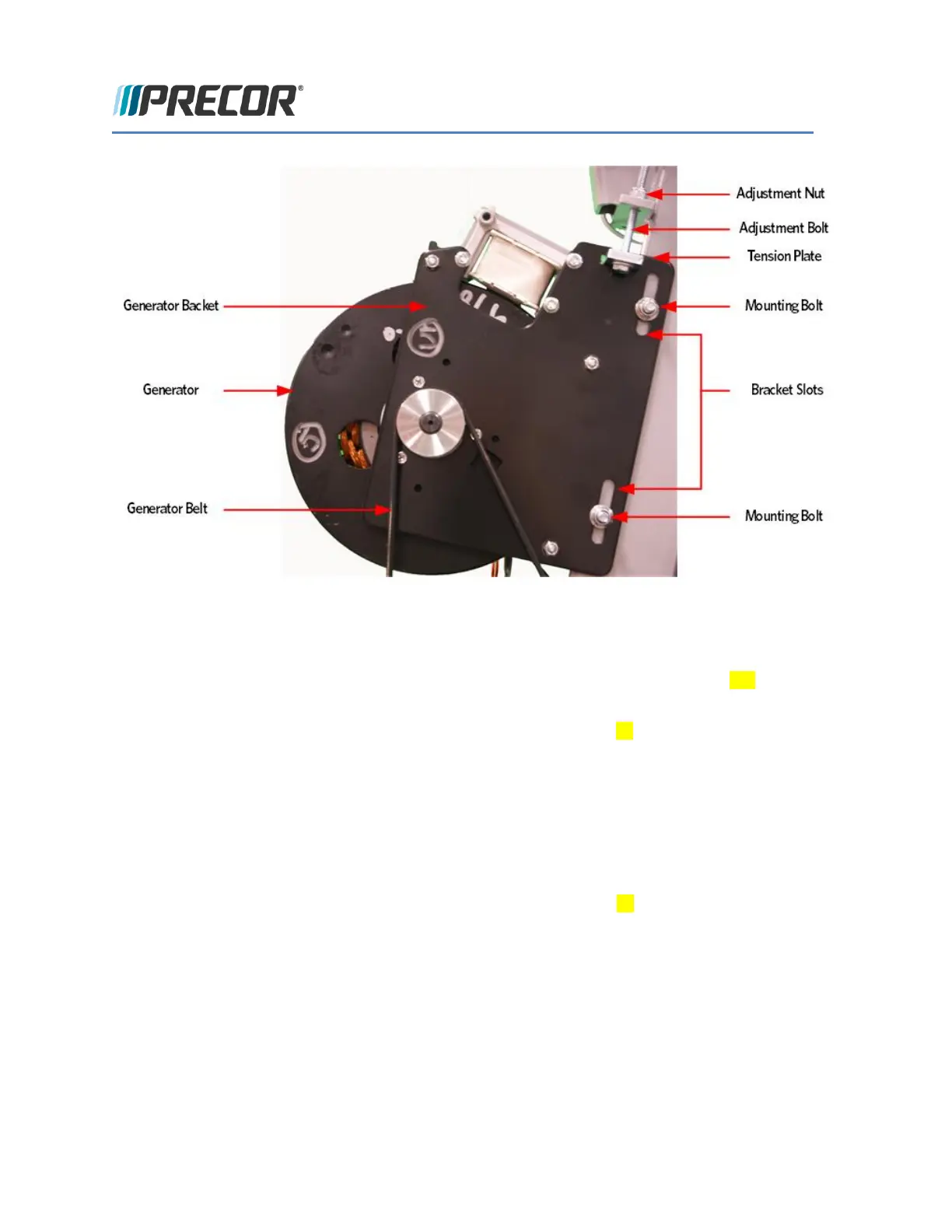

17 The drive input belt tension should read approximately 120 ± 10 lbs and the generator belt tension
should read approximately 90 ± 10 lbs. See Drive Belt Gauge Instructions (on page 265)
18 Lift the stairarms and thread the flat belts through the pulleys.
19 Replace the covers as per procedure, Cover Replacement (on page 53).
Replacing the Lift Arm Housing
Lift Arm Housing Replacement Procedure
1 Remove the covers as per procedure, Cover Replacement (on page 53).
2 Remove the tension from the inner flat belt pulleys by lifting up on the stairarms, pulling the flat belts off
the flat belt pulleys, and then gently setting the stairarm down.
Gas Shock Removal
3 Release tension from the top of the gas shock by pushing a # 1 flat tip screw driver in the slot under the
tension clip. Do not completely remove the retaining clip as it is difficult to reinstall.
