Flat Belt Removal - Upper Arm Cam
Note: Any time the flat belt terminal screws are removed from the flat belt clamp or cams, the screws
must be discarded and replaced with new screws.
9 Remove and discard the two 1/4-20X1 flat belt cam clamp screws and shims that secure the flat belt to
the clamp.

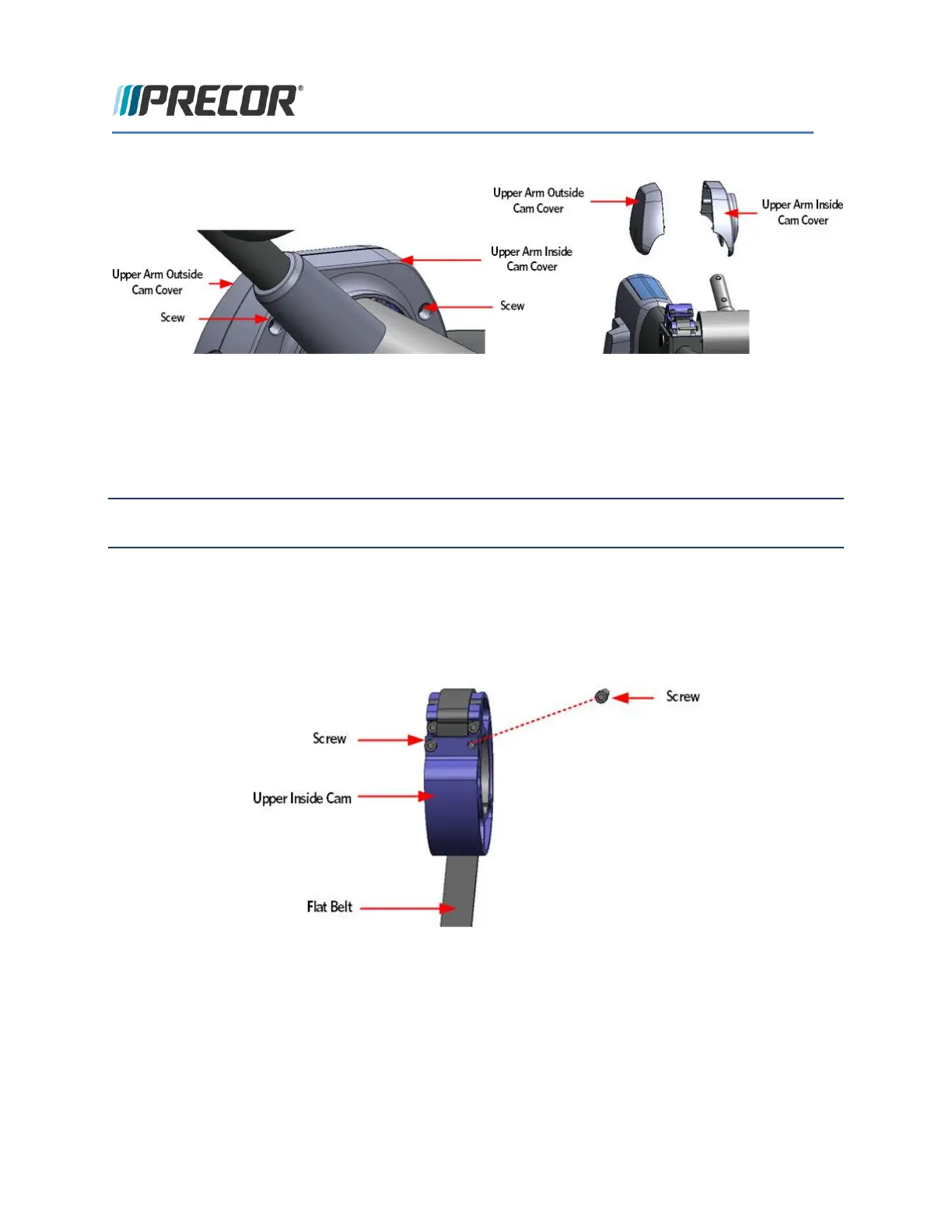

FIGURE 62: UPPER INSIDE CAM SCREW REMOVAL
10 Using a screw driver tip, push out the pin from the flat belt loop and cam clamp and then slide the flat
belt out of the cam clamp. Remove the flat belt.
FIGURE 63: UPPER INSIDE CAM PIN REMOVAL
