© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 140

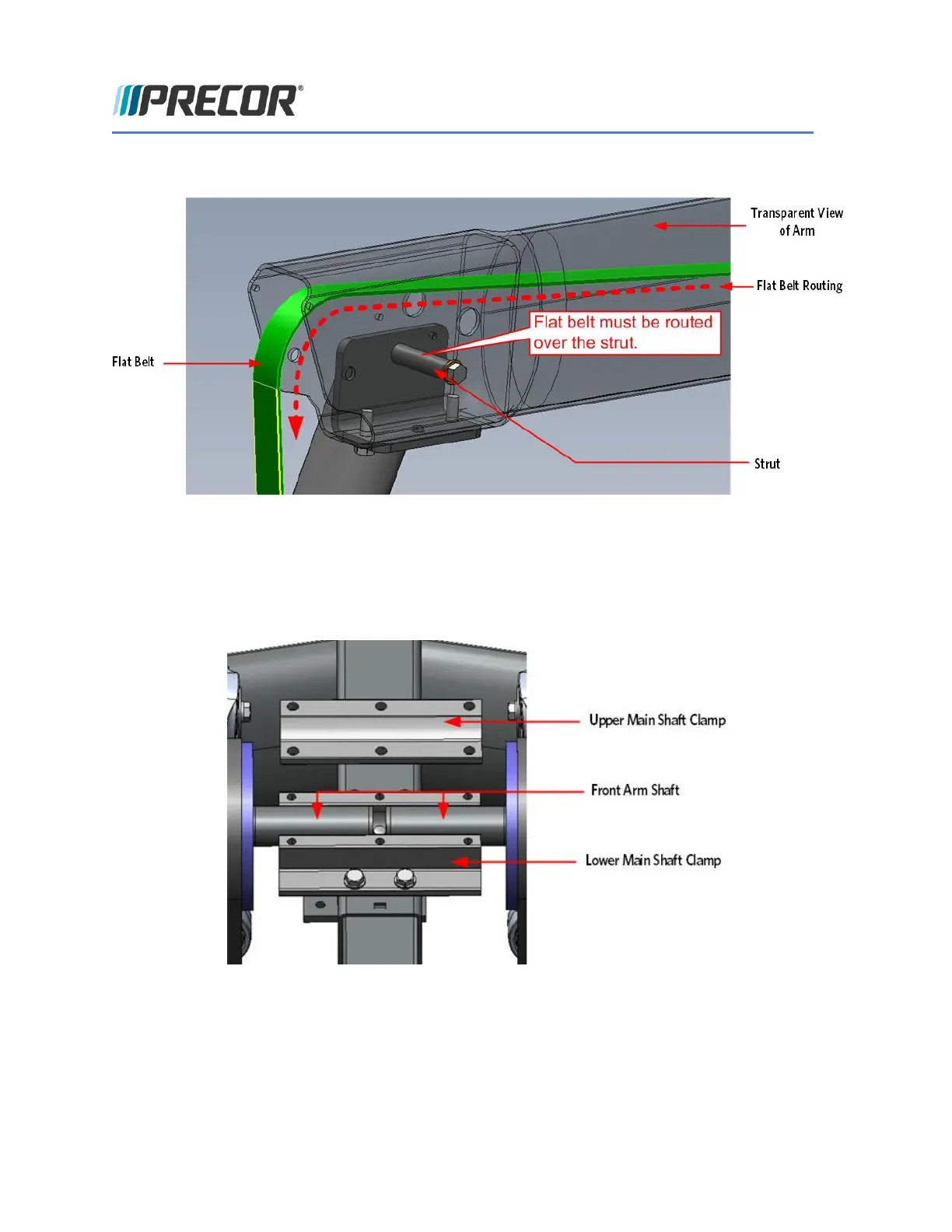

FIGURE 114: FLAT BELT ROUTING - TRANSPARENT VIEW OF ARM
20 With assistance, lift the front arm and place it into the main shaft clamp and upper arm. Repeat the
process for the remaining front arm assembly.
FIGURE 115: FRONT ARM SHAFT AND MAIN CLAMP
21 Insert and finger tighten the shoulder bolts that secure the outside cam tubes to the upper arms.
