© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 139

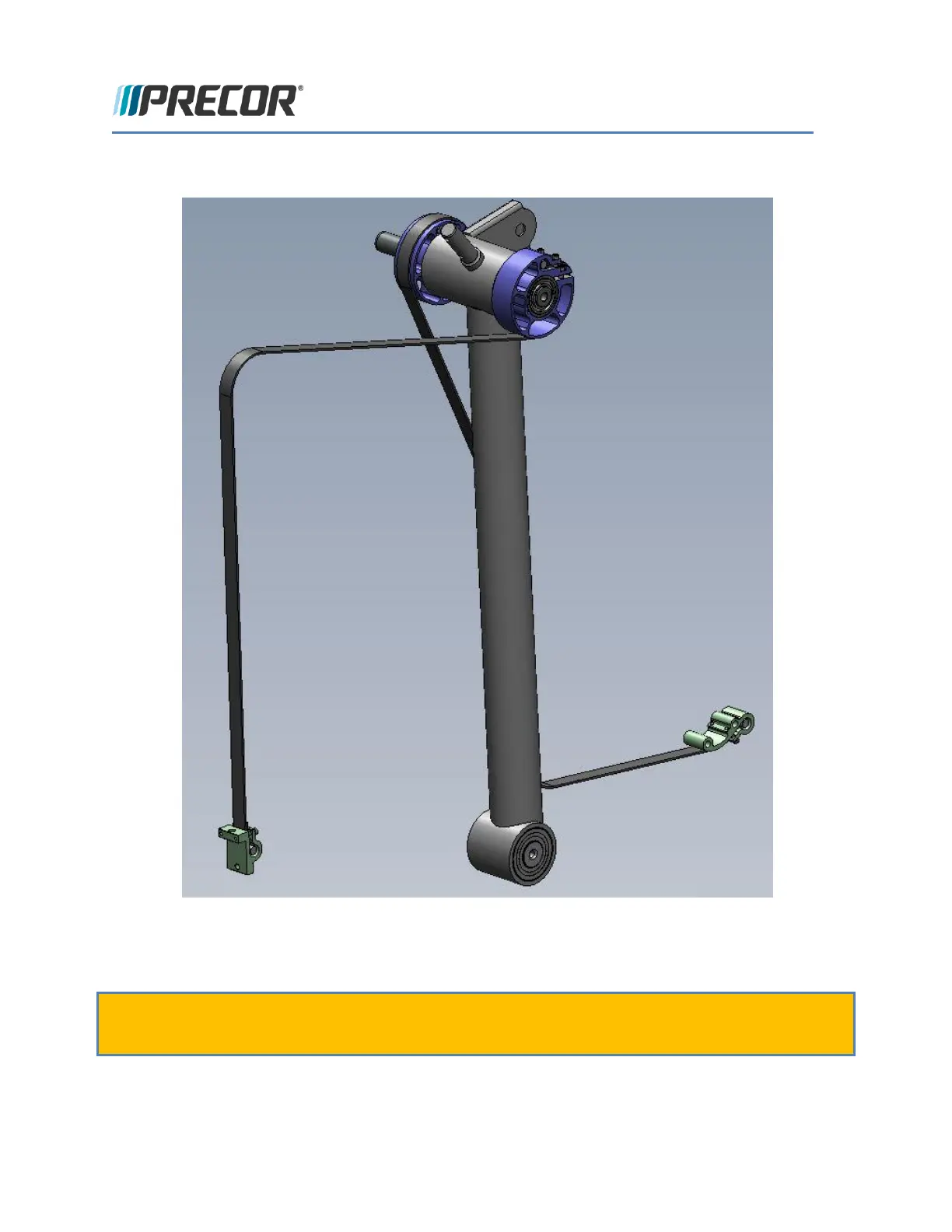

FIGURE 113: FRONT ARM AND BELTS
19 Set and support the right front arm assembly next to one of the front arms while feeding the outside flat
belt through the upper arm.
Note: the flat belt must be routed over the strut in the front arm assembly. Failure to route the flat belt over
the strut will cause severe damage to the flat belt. The Figure below illustrates the correct flat belt routing.
