© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 92

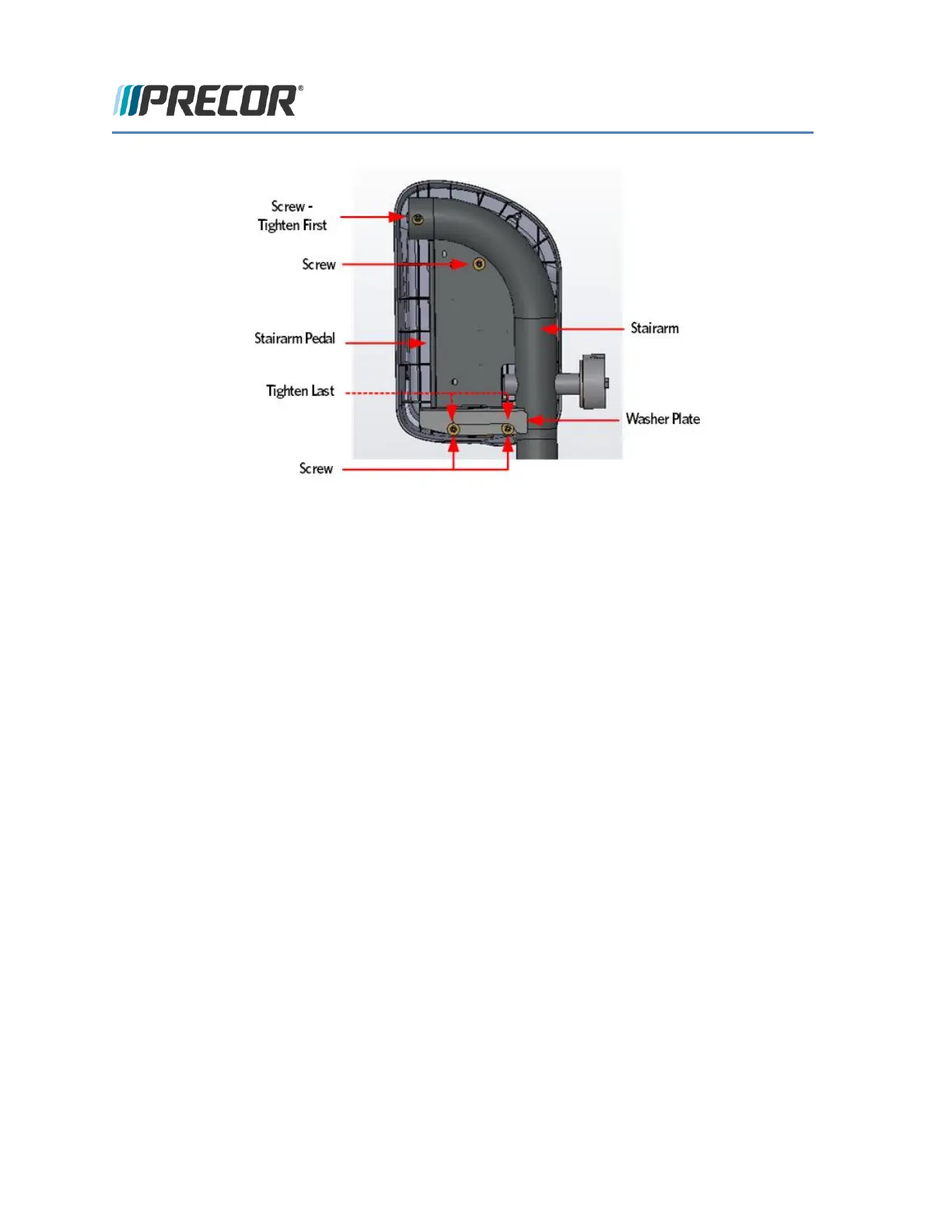

13 Position the stairarm in the front arm.
14 Place the shaft of a Philips screw driver into the drain hole on the bottom of the front arm and thread
one of the two 1/2-13X1 screws into stairarm. Using the installed screw, rotate the front arm bearing
until the screw driver engages into the bearing, locking the bearing. You may have to rotate the bearing
one full turn to align the bearing lock hole with drain hole.
15 Once the screwdriver has locked the bearing preventing further rotation, fully tighten the inside and
outside mounting bolts, torque to 83 foot pounds or 1000 inch pounds.
16 Remove the screwdriver from the drain hole.
Rear Flat Belt Terminal Installation
17 Carefully slide on the anti-rotation disc and flat belt terminal. Do not use excessive force. Fasten the
anti-rotation disc and flat belt terminal onto the stairarm using the washer and mounting bolt, torque to
300 inch pounds or 25 foot pounds.
FIGURE 56: FLAT BELT TERMINAL REMOVAL
