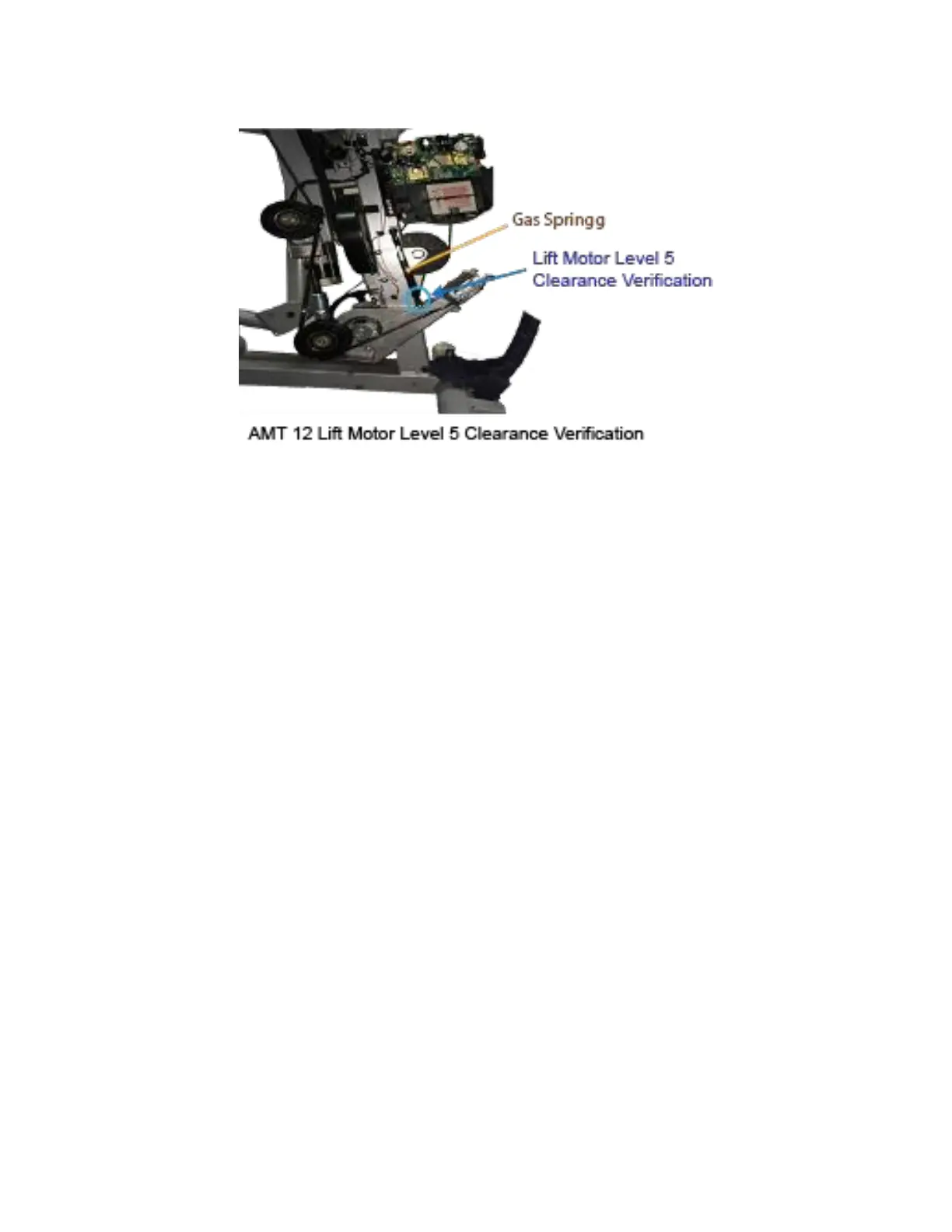

a If less than ¼ inch, set the Cross Ramp to level 1 and readjust the lift motor actuator tube to increase
the mounting distance. Remove the lift motor mounting pin, rotate the lift motor actuator tube ½ turn
“counterclockwise”, manually raise the lift platform to align the mounting holes and reinstall the hitch
pin. Verify that the incline level 5 A/D value is within specification, Readjust if necessary.
b If greater than 3/4 inch, set Cross Ramp to level 1, and readjust the lift motor actuator tube to
decrease the mounting distance. Remove the lift motor mounting pin, rotate the lift motor actuator
tube ½ turn “clockwise”, manually raise the lift platform to align the mounting holes and reinstall the
hitch pin. Verify that the incline level 5 A/D value is within specification, Readjust if necessary.
17 Set the Cross Ramp to level 1. Verify the A/D value is between 38 and 42.
18 Operate the incline through its entire range to ensure proper operation.
19 Reinstall the front, side, and rear covers.
20 Verify AMT operation and return to service.
Drive Belt Gauge Instructions
How to the Drive Belt Gauge
The following instructions will describe how to use the SP6673 belt tension gauge. Deviating from the
instructions may result in inaccurate readings and may potentially cause premature failure to the drive belt
or damage to the machine.
Procedure
1 Fully depress the ball so the hook engages the belt.
2 Hold the gauge square to the edge of the belt, and release the ball using a quick, snapping motion.
To Next Page
