General Information
Right, Left, Front, and Back Conventions
In this manual, right, left, front, and back are from the perspective of a user standing on the AMT facing the
console display.

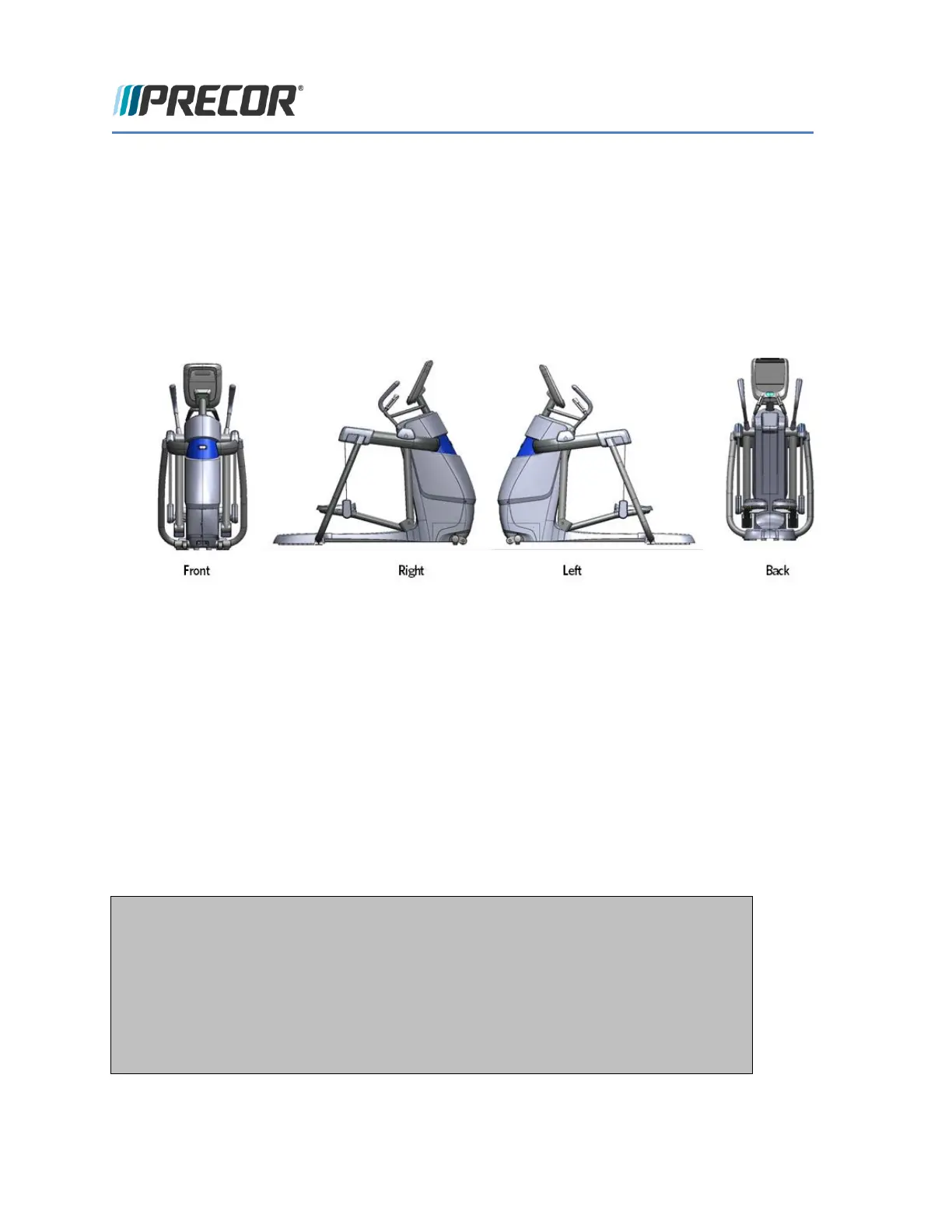

FIGURE 1: FRONT, BACK, LEFT, RIGHT CONVENTIONS
General System Information
The generator performs three functions in the AMT. First, by controlling the amount of electrical current
applied from the generator to a load circuit, the user’s pedaling resistance is controlled. Second, the
generator is used to charge the AMT’s internal battery. Lastly, one of the generators three phase output
windings is monitored to determine when the unit is in use and when it is idle. This system also determines
the step rate by determining the operating speed (output frequency) of the monitored generator winding. A
magnetic brake applies resistance to horizontal motion and a sensor that measures horizontal motion (stride
length).
General Information
For the latest exploded view, part number and part pricing information, visit the Precor dealer website at
www.precor.com/connection.
Tools Required
US and metric end wrench set
US and metric socket wrench set
Torque wrench, 200 in./lbs.
Torque wrench, 200 ft./lbs
OTC 6673 Universal Belt Tension Gauge
