© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 68
with the guard toward the front. Align the interlocking tabs of the front belt guard with the slots of the
rear belt guard; rotate the halves together around the flat belt until the locking tabs are locked.

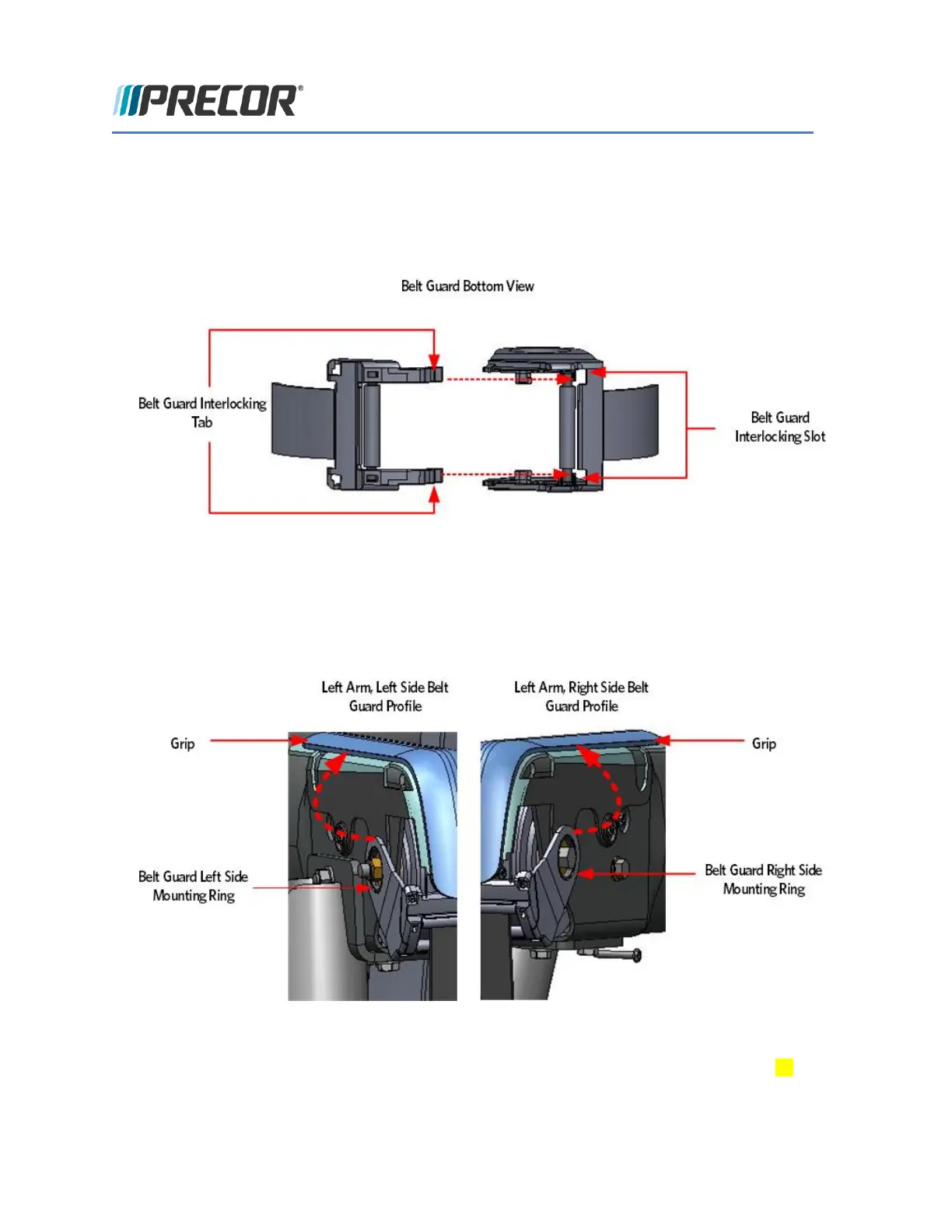

FIGURE 24: BELT GUARD INTERLOCKING TABS AND SLOTS
8 Grasp each belt guard mounting ring, lift the belt guard into position over the upper arm mounting bolts,
and then secure each mounting ring to the connection ring.
FIGURE 25: BELT GUARD MOUNTING
9 Replace the upper arm covers as per procedure, Upper Arm Cover Replacement (on page 61).
