© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 67

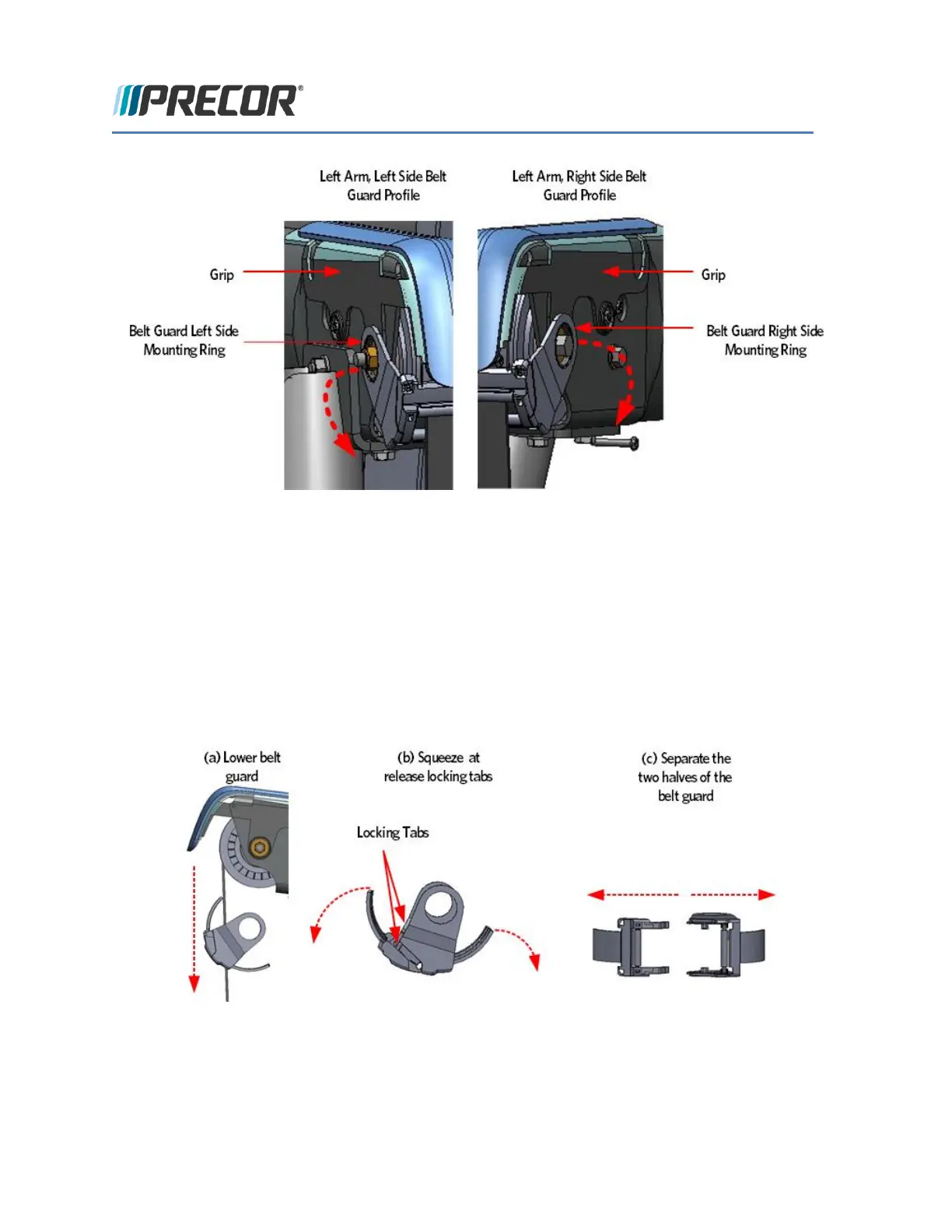

6 The belt guard assembly is two interlocking pieces and needs to be separated before it can be removed
from flat the belt:
a) Lower the belt guard down just below the upper arm.
b) Squeeze the belt guard near the base to release locking tabs and rotate two halves down.
c) Taking care to not lose the rollers inside the belt guard, pull the two belt guard halves away from
each other to separate.
FIGURE 23: BELT GUARD REMOVAL
7 Place the two sections of the replacement belt guard so they are positioned around the flat belt just
below the upper arm. The front belt guard should be positioned so that the interlocking tabs are pointing
toward the front of the machine, and the guard toward the back. The rear belt guard should be positioned
To Next Page
