Precor AMT12 base - Front Arm Mounting Bolt; Main Shaft Clamp Bolts- Torque Sequence

© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 141

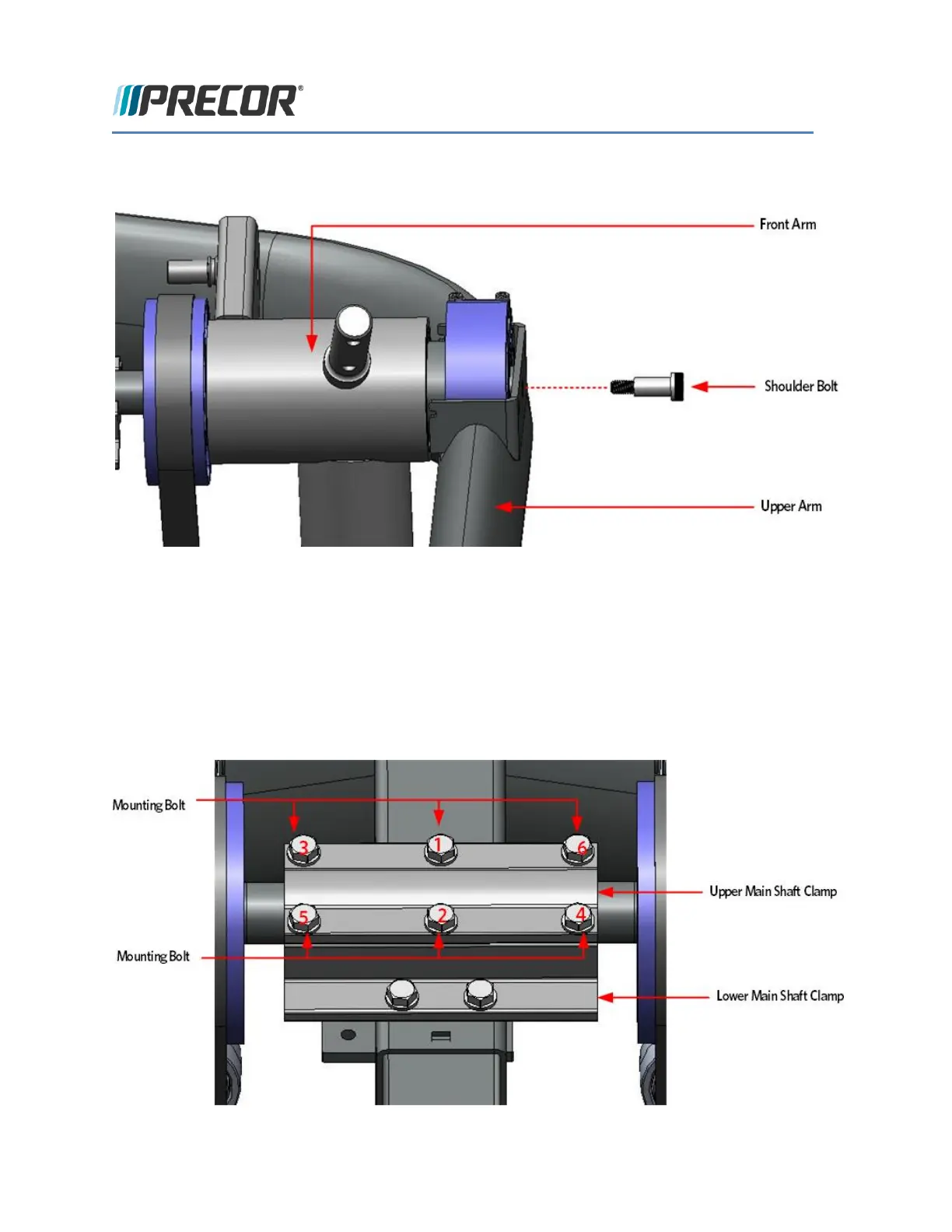

FIGURE 116: FRONT ARM MOUNTING BOLT
22 Insert and finger tighten the six main arm shaft bolts that secure the main shaft clamp to the lower main
shaft clamp.
23 Use the following sequence to ensure the upper arm main shaft is properly secured to the front arm
shaft; torque the bolts to 160 inch pounds.
FIGURE 117: MAIN SHAFT CLAMP BOLTS- TORQUE SEQUENCE
