Rear Flat Belt Terminal Cover Installation
18 Align the top of the replacement inside cover so that it is pointing toward the floor. Place the bottom of
the cover in between the flat belt terminal and the stairarm pedal. Rotate the top of the cover up and in
to place.
19 Fasten the outside and inside terminal cover to the flat belt terminal using the two #10-24 X 1.25 screws.

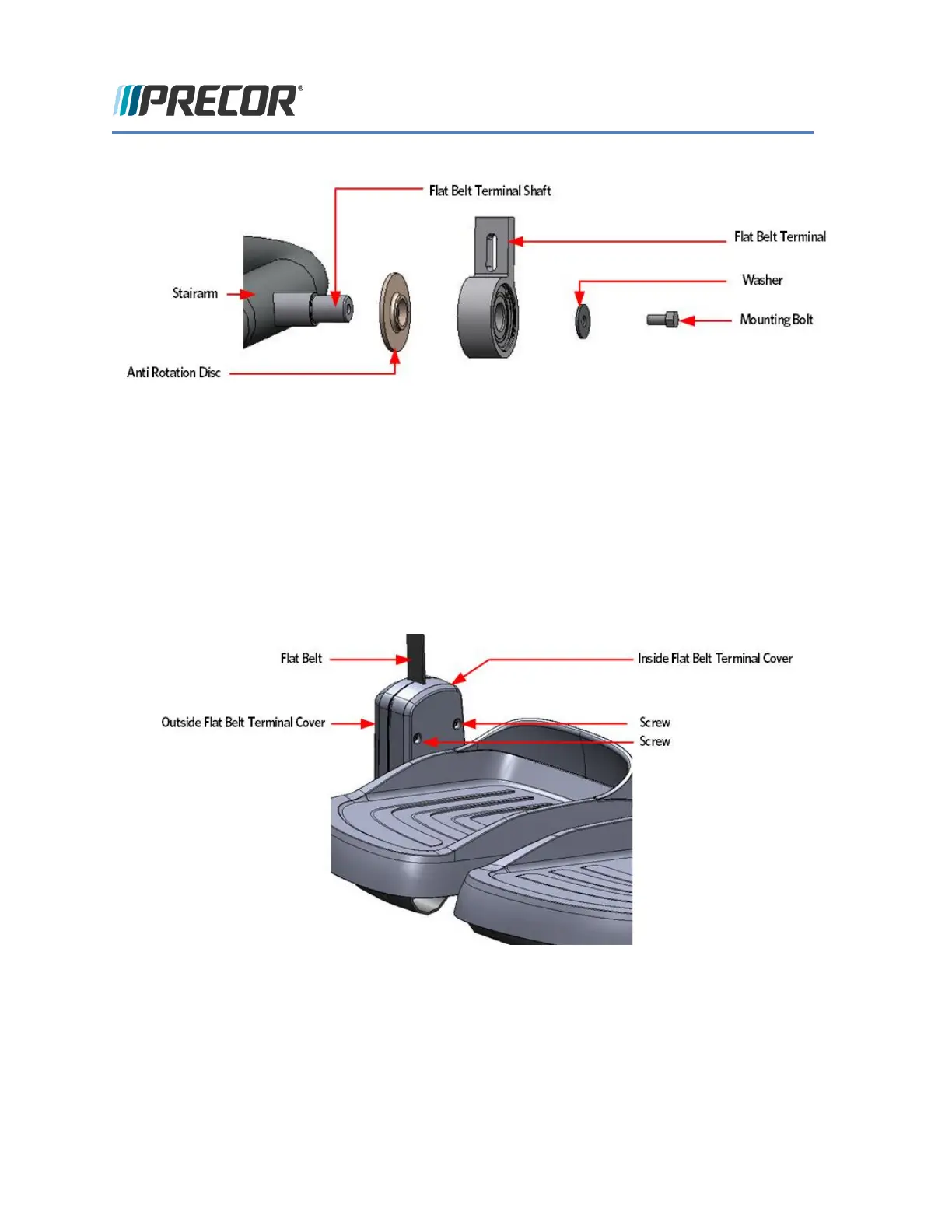

FIGURE 57: FLAT BELT TERMINAL COVERS
Lift the stairarms and then thread the flat belts over the flat belt pulleys.
Replacing the Flat Belts
