Left and Right Bottom Cover Assembly
1 Set the left and right bottom covers in place, align the cover mounting holes.
2 Fasten the two covers together with the 8 #10 x ¾ inch screws.
Left and Right Side Cover Assembly
1 Grasp the side cover near the bottom, rotate the side cover so that the top of the side cover points
toward the front of the AMT and the round notch in the cover points up.
2 Thread the top of the side cover under the upper arm weldment and toward the front of the AMT.
3 Rotate the top of the side cover up until the round notch of the side cover meets the upper arm.
4 Push the bottom of the side cover in until the tabs of the side cover rest in the notches on the bottom
cover.
5 Repeat the side cover assembly procedure for the right side cover.

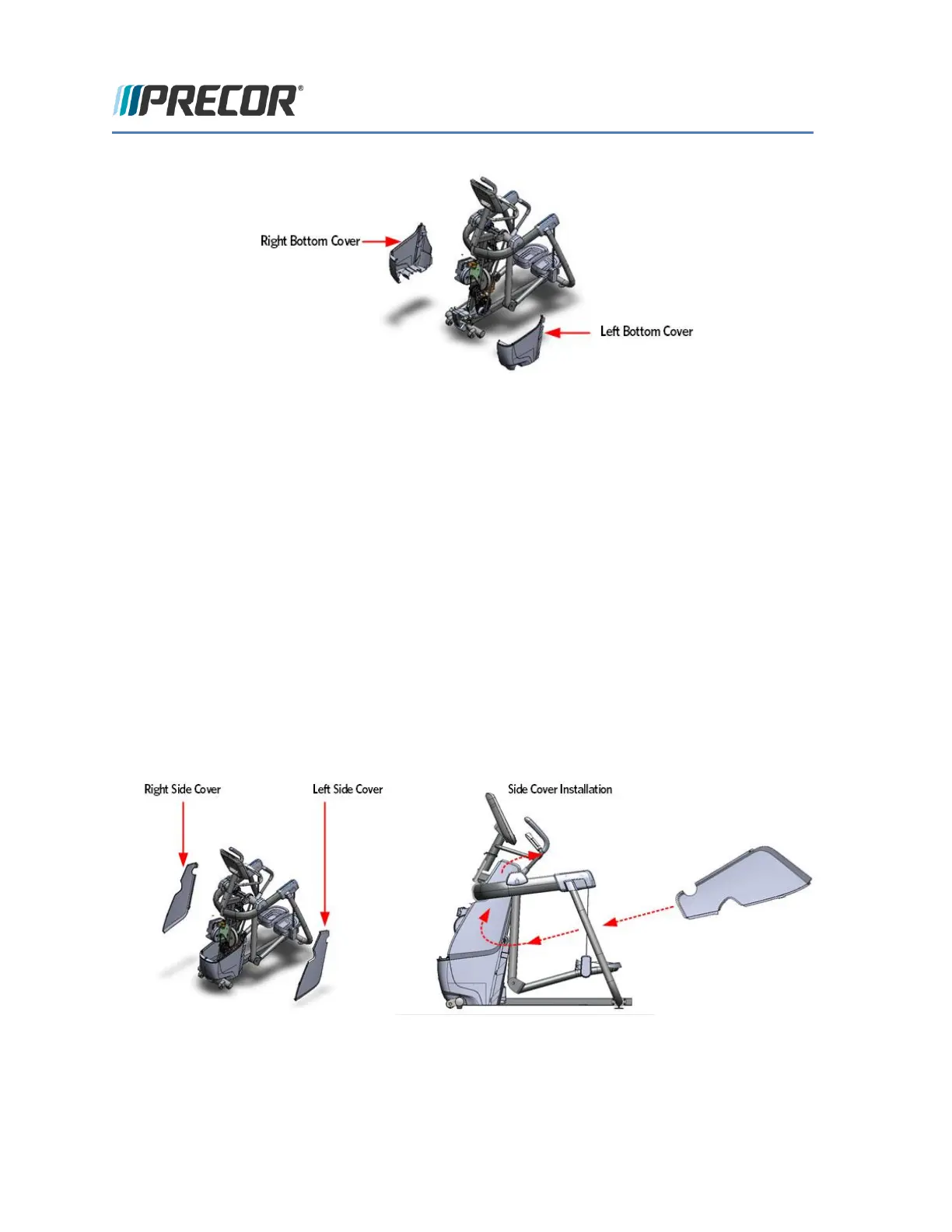

FIGURE 13: SIDE COVER ASSEMBLY
Back Cover Assembly
1 Hold the back cover up against the frame of the AMT in the approximate final position.
