© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 199
33 Select the QUICKSTART program and adjust the resistance up ▲ key until resistance level 10 is
displayed. Pedal the AMT for approximately one minute, then recheck the belt tension.

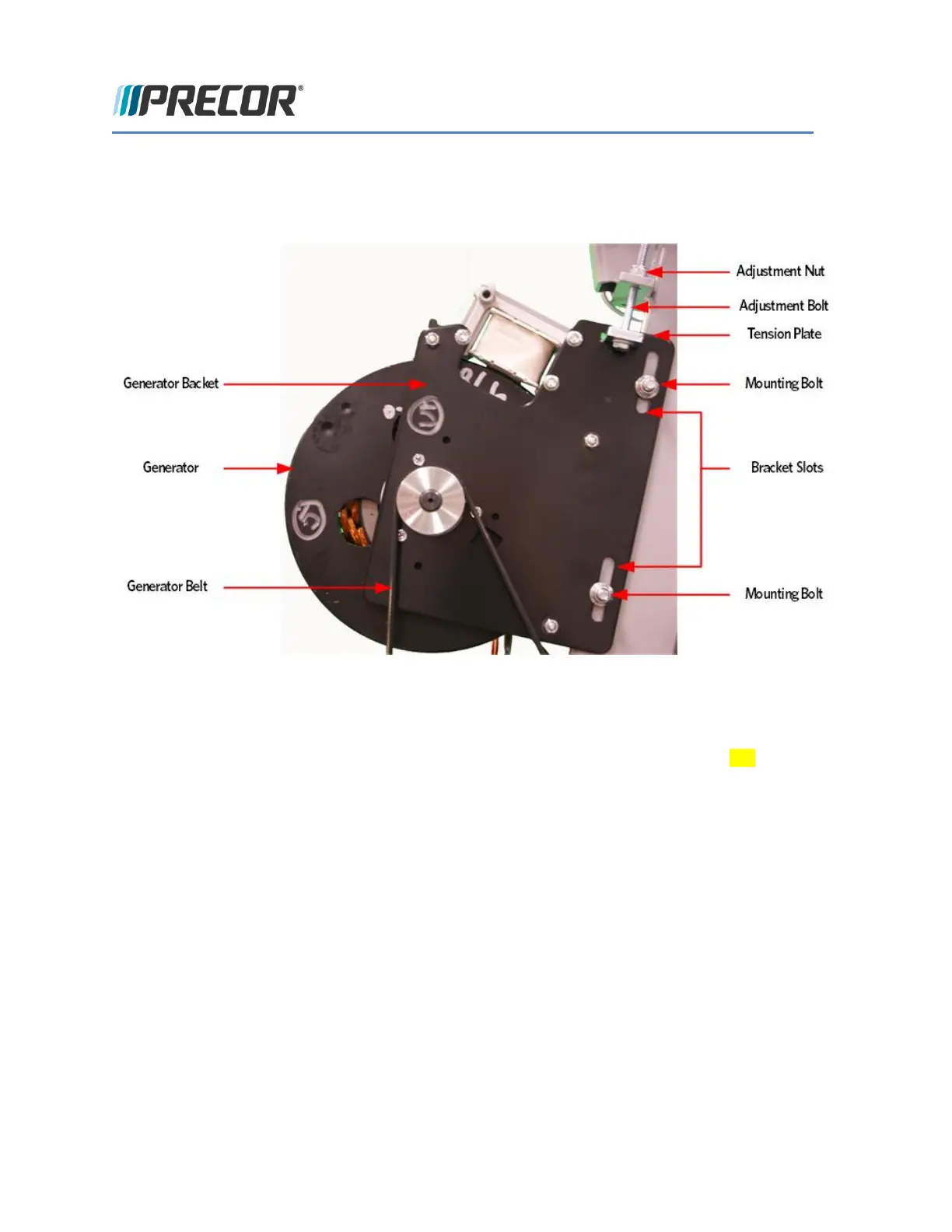

FIGURE 189: GENERATOR
34 The drive input belt tension should read approximately 120 ± 10 lbs and the generator belt tension
should read approximately 90 ± 10 lbs. See Drive Belt Gauge Instructions (on page 265)
Incline Motor Installation
35 Attach the replacement Incline motor to the frame using the 3/8-16 mounting bolt.
