Precor AMT12 base - Back and Bottom Cover Assembly; Back Cover Locking Tab

© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 60
2 Slide the bottom of the back cover in until the tabs of the back cover rest in the notches of the bottom
covers.

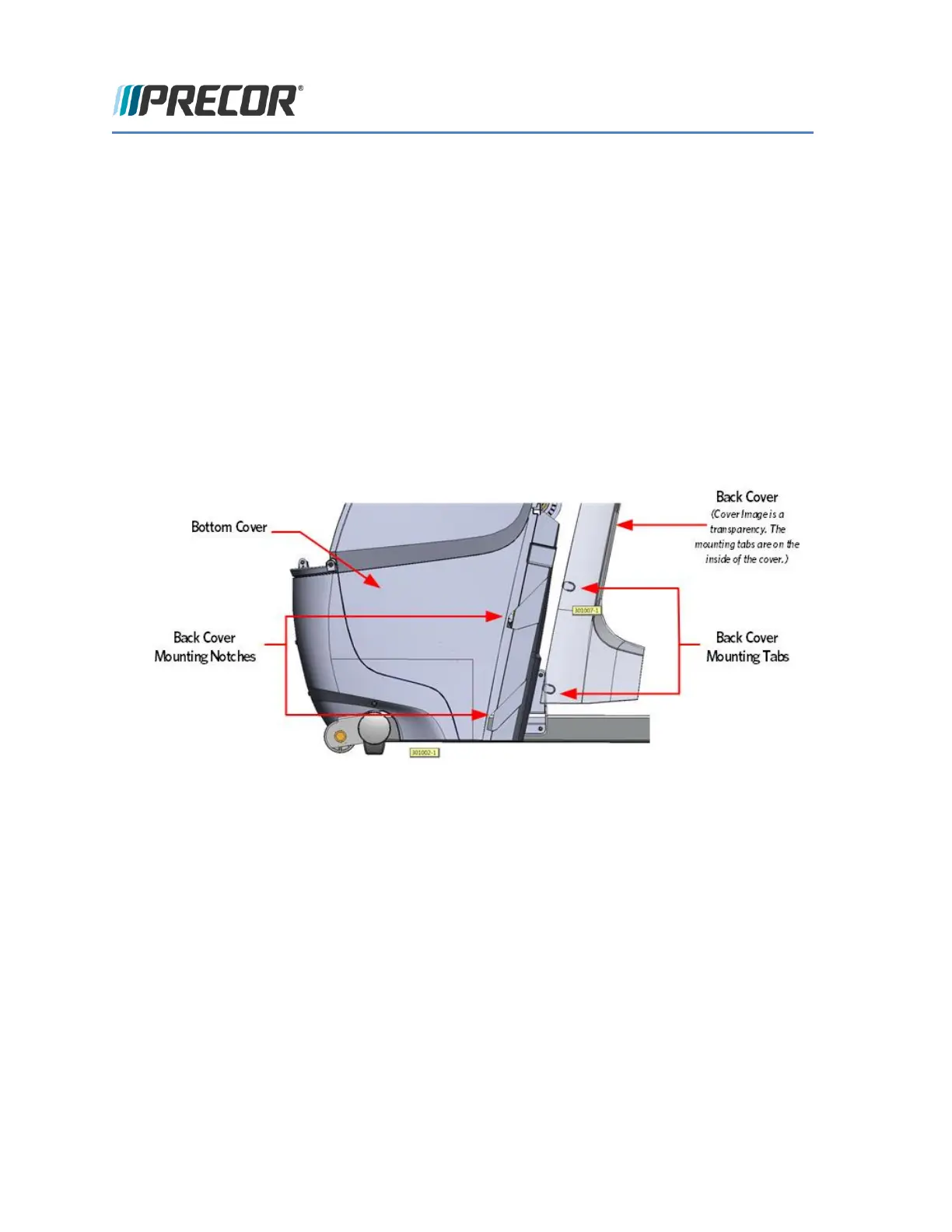

FIGURE 14: BACK AND BOTTOM COVER ASSEMBLY
3 Rotate the back cover forward until the locking tab of the back cover is aligned with cover mounting slot
of the frame, push against the top of the back cover until the locking tab and slot are engaged.
FIGURE 15: BACK COVER LOCKING TAB
