© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 165
4 Remove the lower PCA as per procedure, Lower PCA (see "Removing the Lower PCA" on page 163).
5 Remove the #10-24X.75 screw located at the bottom left corner that secures the bracket to the frame.
6 Carefully disengage wires form the securing clips on the lower PCA battery bracket.

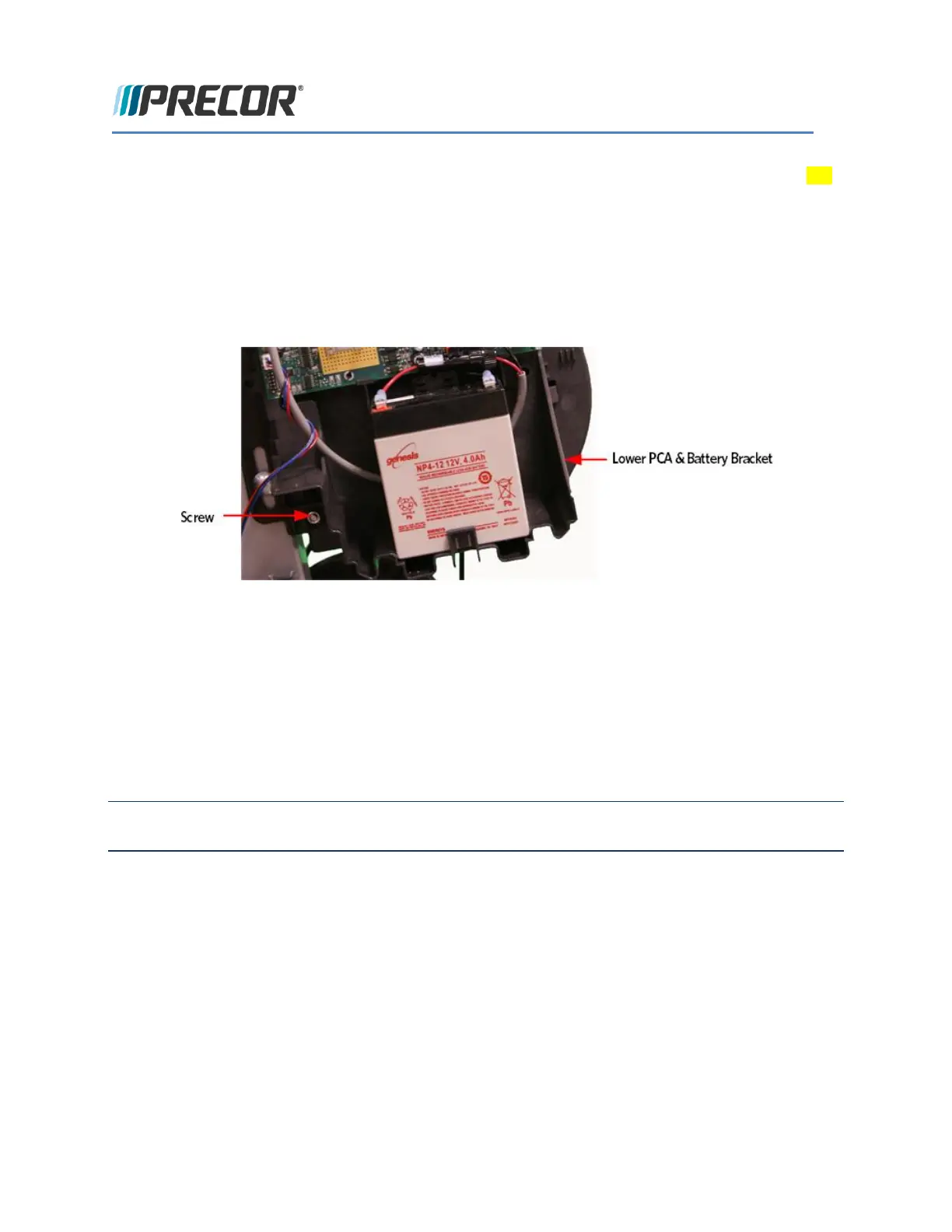

FIGURE 147: LOWER PCA AND BATTERY BRACKET
7 Lift the bracket up and off the generator bracket.
Battery Bracket Installation
8 Align the Lower PCA mounting tabs with the generator bracket, then slide the bracket down onto the
generator bracket.
Note: Ensure that the wires are not pinched between the generator bracket and the lower PCA battery
bracket.
FIGURE 148: LOWER PCA & BATTERY BRACKET MOUNTING
