© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 62
Procedure:
1 Remove the four screws that fasten the inside upper arm covers to the upper arm.
2 Remove the screws that fasten the outside upper arm covers to the upper arm.
3 Remove the inside and outside covers from the upper arm.
4 Secure the replacement cover to the arm using the five screws removed in step 1. Finger Tighten screws
in all locations before fully tightening screws.

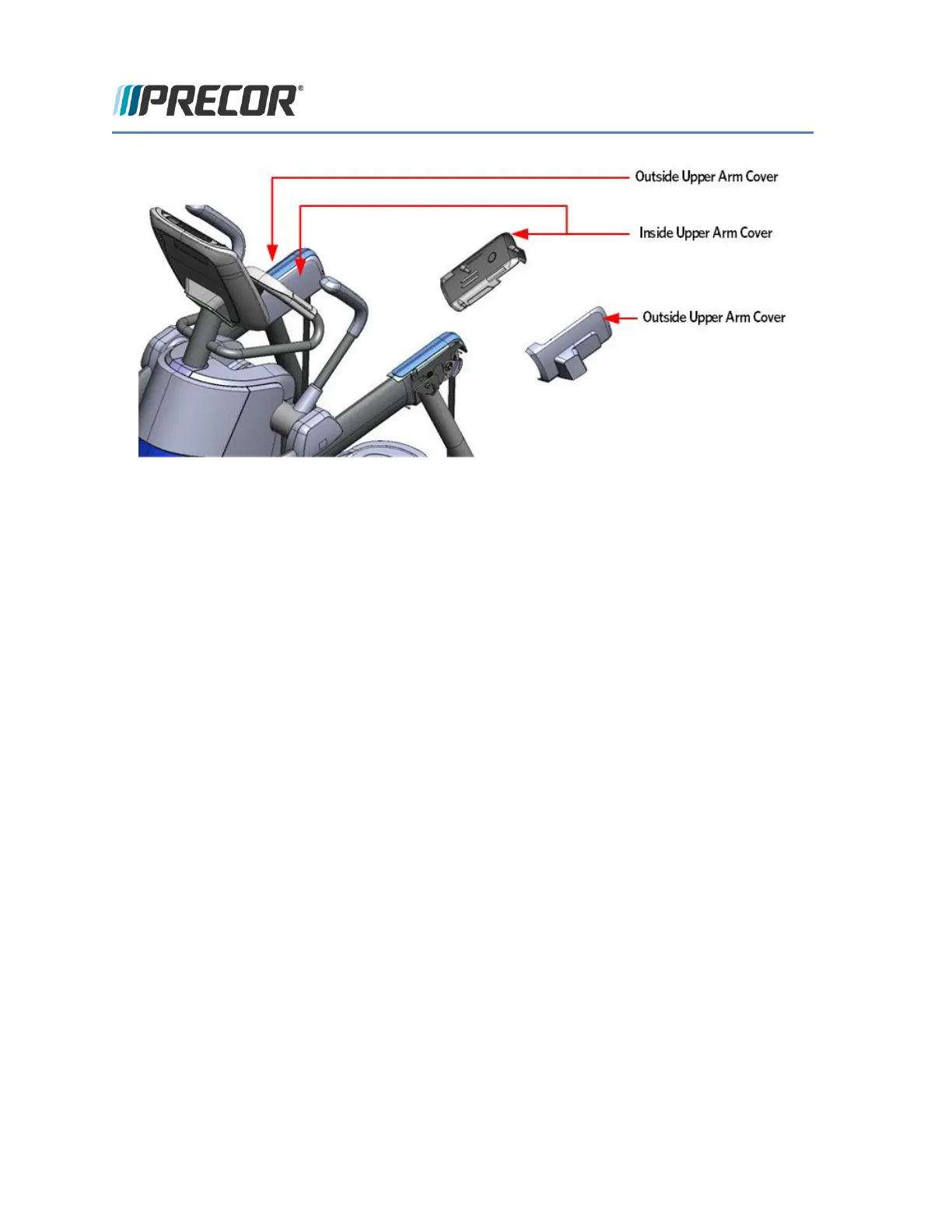

FIGURE 17: UPPER ARM COVER SCREW LOCATIONS
