© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 78

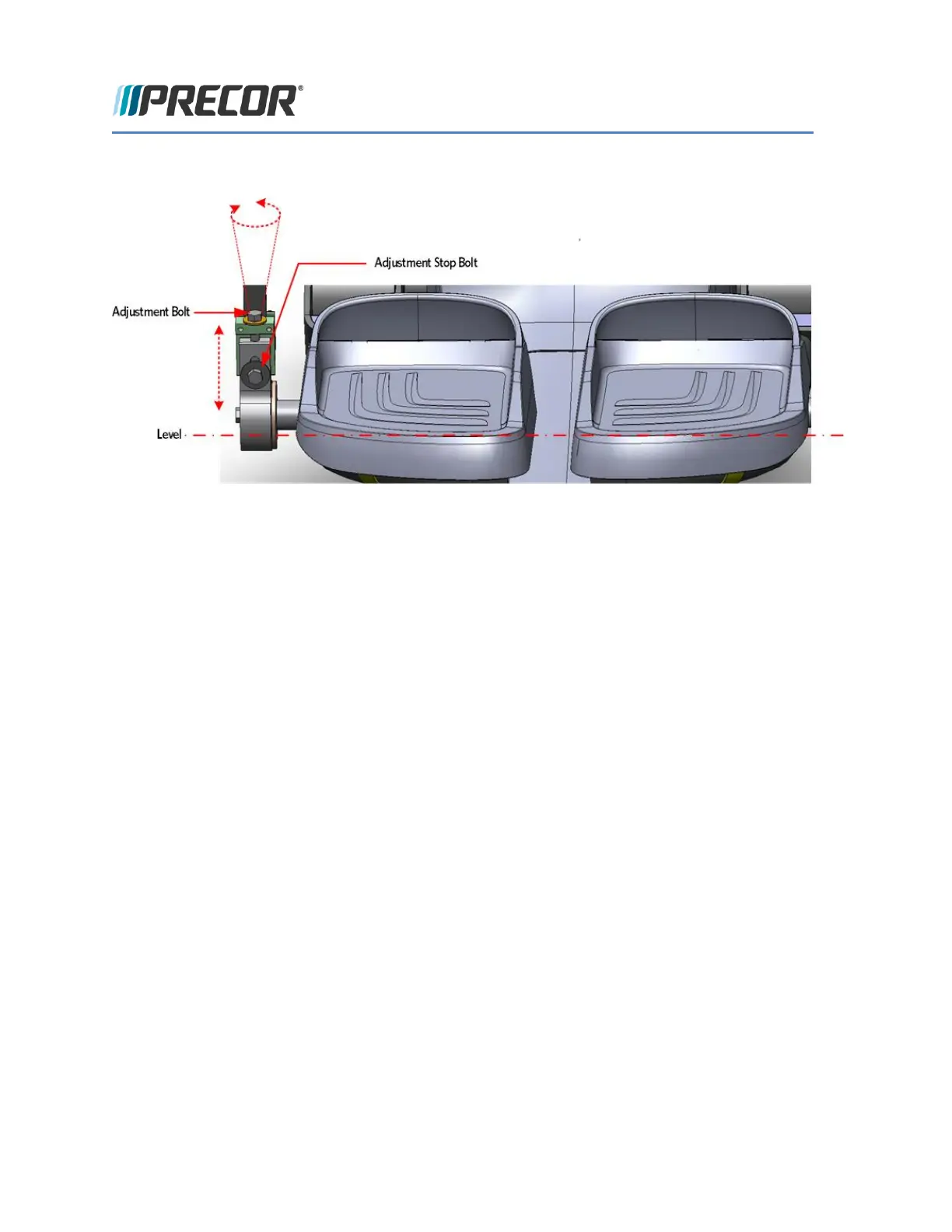

FIGURE 37: FLAT BELT TERMINAL ADJUSTMENT
16 Repeat the process for the remaining stairarm.
17 Fully tighten the stop bolt, torque to 300 inch pounds or 25 foot pounds.
Rear Flat Belt Terminal Cover Installation
1 Align the top of the replacement inside cover so that it is pointing toward the floor. Place the bottom of
the cover in between the flat belt terminal and the stairarm pedal. Rotate the top of the cover up and in
to place.
2 Fasten the outside and inside terminal cover to the flat belt terminal using the two #10-24 X 1.25 screws.
