H-Brake Belt Removal
2 Remove the H-Brake tension bolt, the two washers and nut.

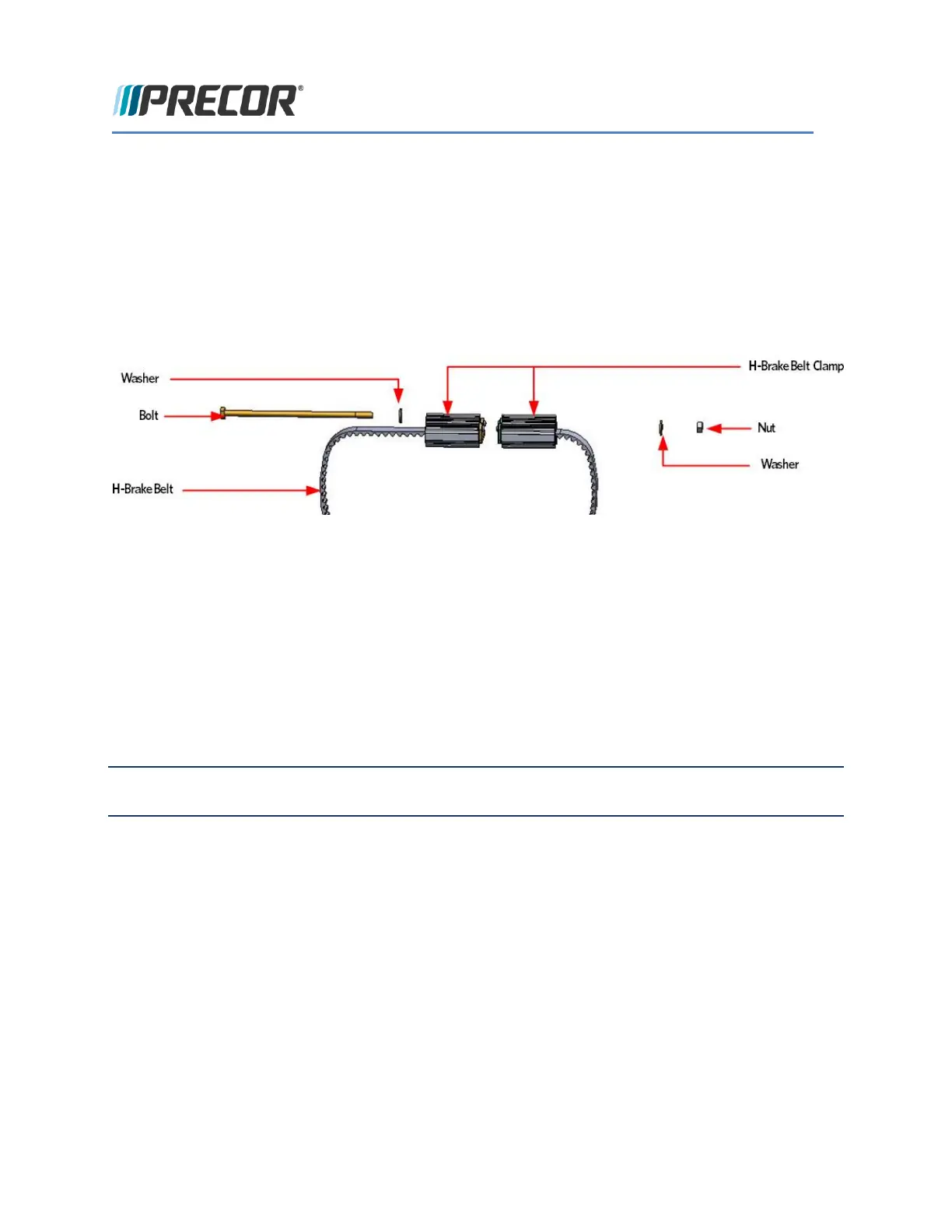

FIGURE 234: H-BRAKE BELT ASSEMBLY
3 Slide the right side belt clamp off the cam towards the right, thread the clamp under the cam and out to
the left side of the AMT.
4 Slide the left side belt clamp off the cam towards the right and remove.
Gas Shock Removal
5 Release tension from the top of the gas shock by pushing a # 1 flat top screw driver in the slot under
the tension clip. Do not completely remove the retaining clip as it is difficult to reinstall.
Tip: If the incline motor is jammed at full elevation, remove the lower retaining clip to facilitate the gas shock
removal.
6 Using another flat head screw driver as a pry bar, place the screw driver head between the frame and
the top of the gas shock and pry the shock off the upper mounting stud.
7 Rotate the gas shock down and out of the way of the incline motor.
FIGURE 235: GAS SHOCK
