© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 91

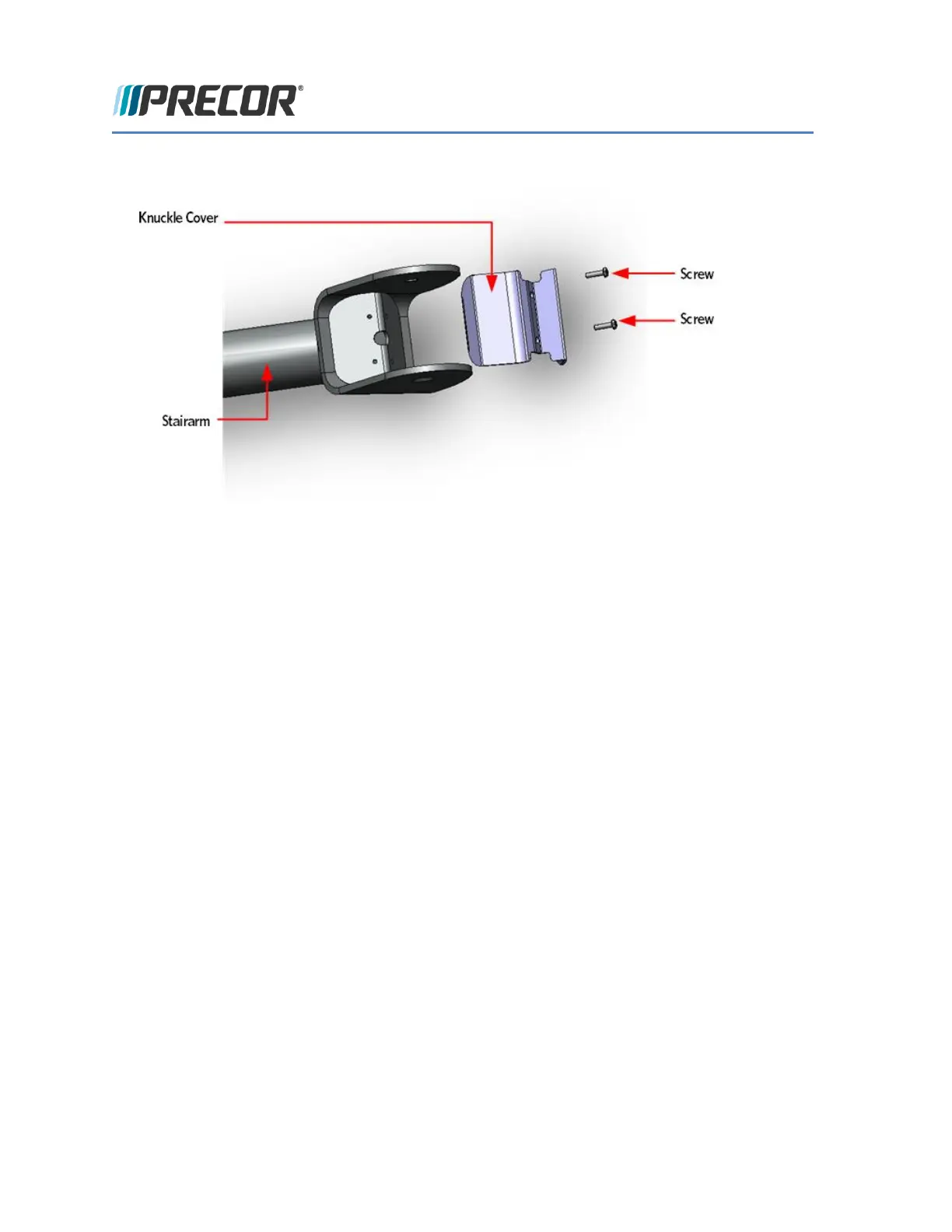

Stairarm Knuckle Cover Installation
10 Secure the knuckle cover to the replacement stairarm using the two #10-24 X .75.
Stairarm Pedal Installation
11 Fasten the replacement stairarm pedal to the stairarm using the four screws and washers removed in
step 2.
12 Torque the screws to 25 inch pounds, starting from the single screw at the end of the stairarm, then the
two camp screws, finally the two rear pedal screws.
FIGURE 55: STAIRARM AND STAIRARM PEDAL SCREW LOCATIONS
