© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 169
15
16 Lift the stairarms and then thread the flat belts over the flat belt pulleys.
17 Select the QUICKSTART program and adjust the resistance ▲ key until resistance level 10 is displayed.
Pedal the AMT for approximately one minute and then recheck the belt tension.

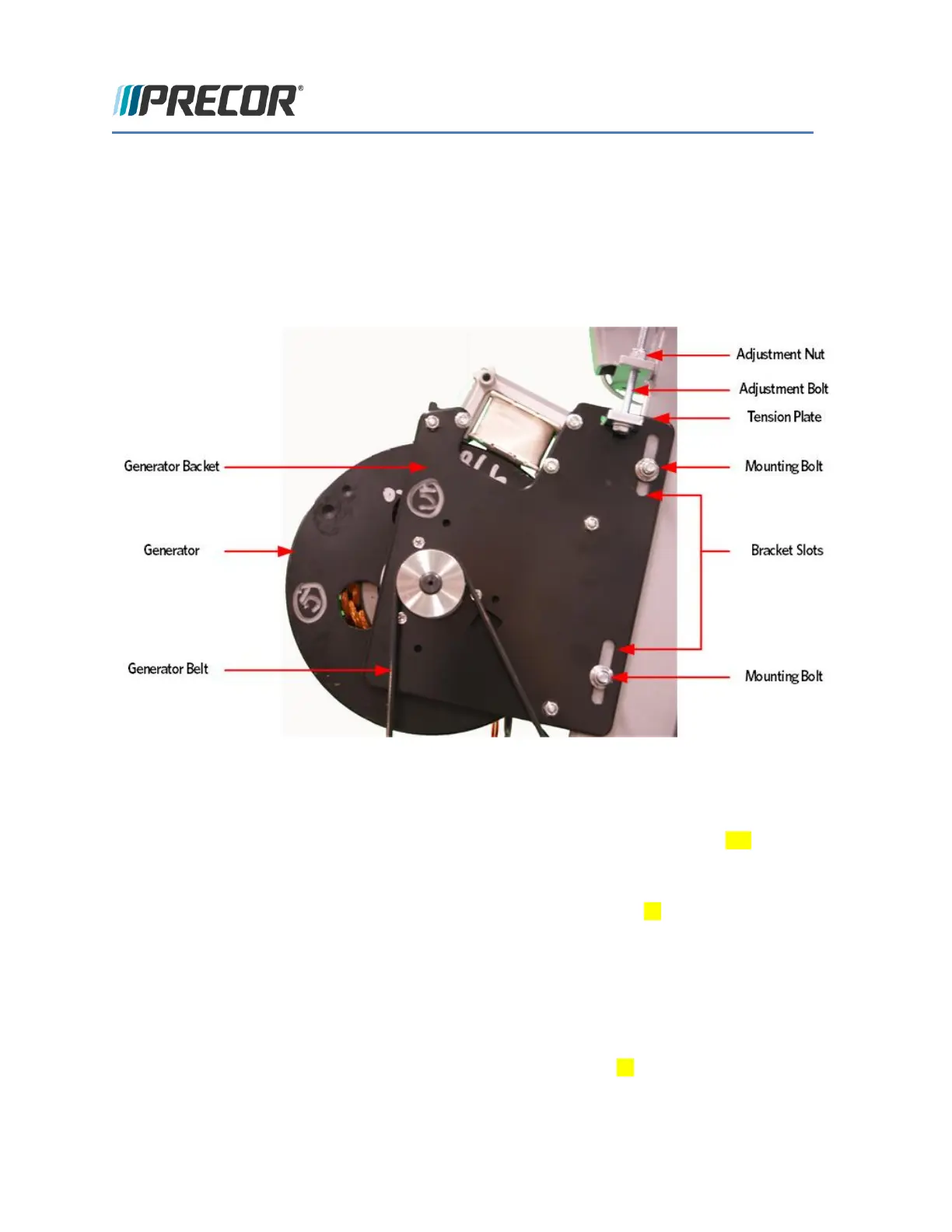

FIGURE 151: GENERATOR
18 The drive input belt tension should read approximately 120 ± 10 lbs and the generator belt tension
should read approximately 90 ± 10 lbs. See Drive Belt Gauge Instructions (on page 265) for attaining
maximum accuracy from the gauge.
19 Lift the stairarms and then thread the flat belts over the flat belt pulleys.
20 Replace the covers as per procedure, Cover Replacement (on page 53). For attaining maximum
accuracy from the gauge.
Replacing the Generator
Procedure
1 Remove the covers as per procedure, Cover Replacement (on page 53).
