© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 168
7 Remove the drive input belt from the step up pulley.

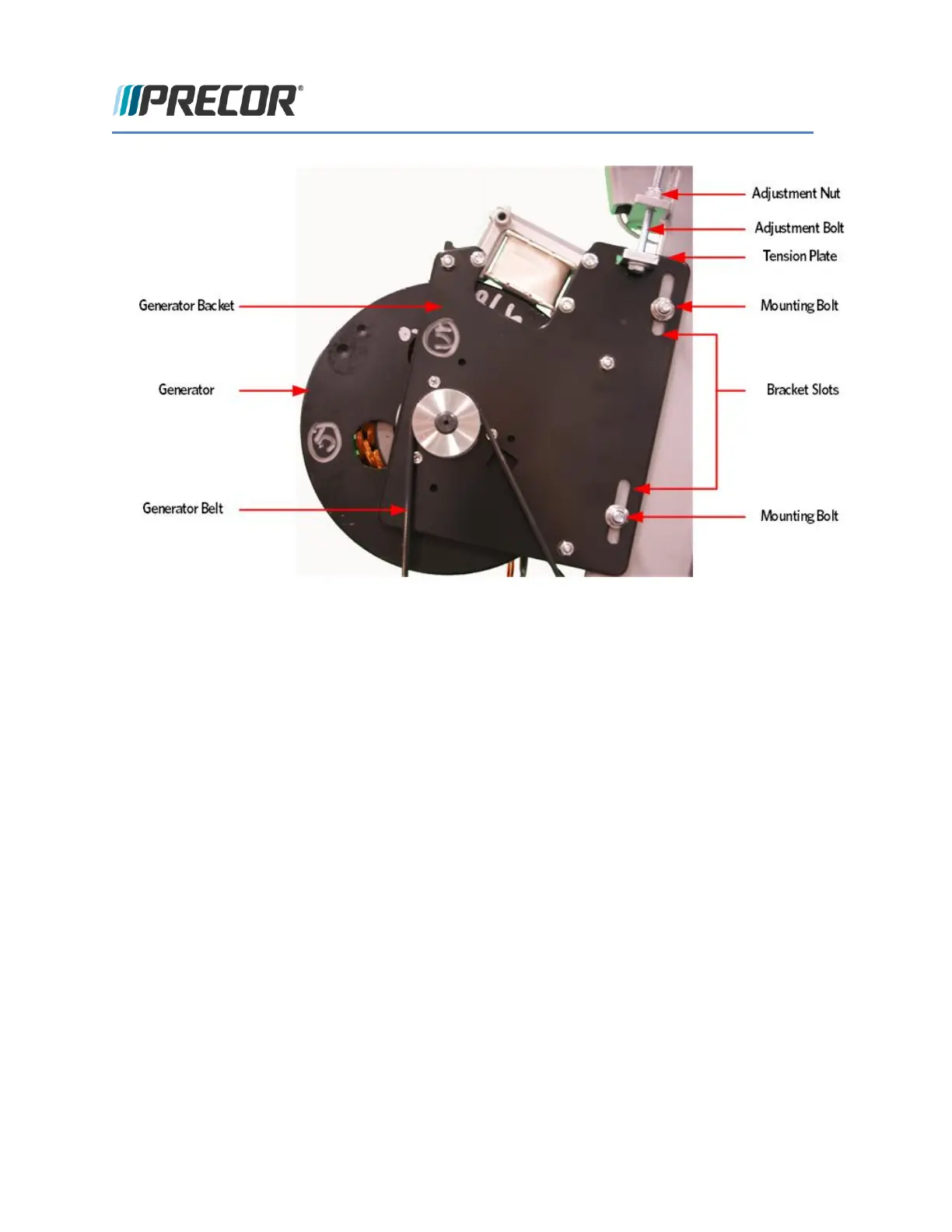

8 Remove the generator belt and discard.
9 Place the replacement generator belt over the larger side of the step up pulley and the generator pulley,
and ensure that the belt is seated in the grooves of both pulleys.
10 Replace the input drive belt (Removed in step7) over the smaller side of the step up pulley.
11 Adjust the Input pulley tension. Go to "Inspecting and Adjusting the Input Belt Tension" procedure.
12 Tighten the two step-up pulley mounting bolts. Torque to 160 inch pounds
13 Install the generator belt over the step up pulley and generator pulley.
14 Adjust the Input and Generator pulley tension. Go to "Inspecting and Adjusting the Generator Belt
Tension" procedure.
.
