© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 61
Center Beam Cover Assembly
1 Set the center beam cover over the frame beam so that the front of the center beam cover is about 3
inches away from the bottom of the back cover.
2 Slide the center beam cover forward until the front of the center beam cover has engaged into the back
cover.

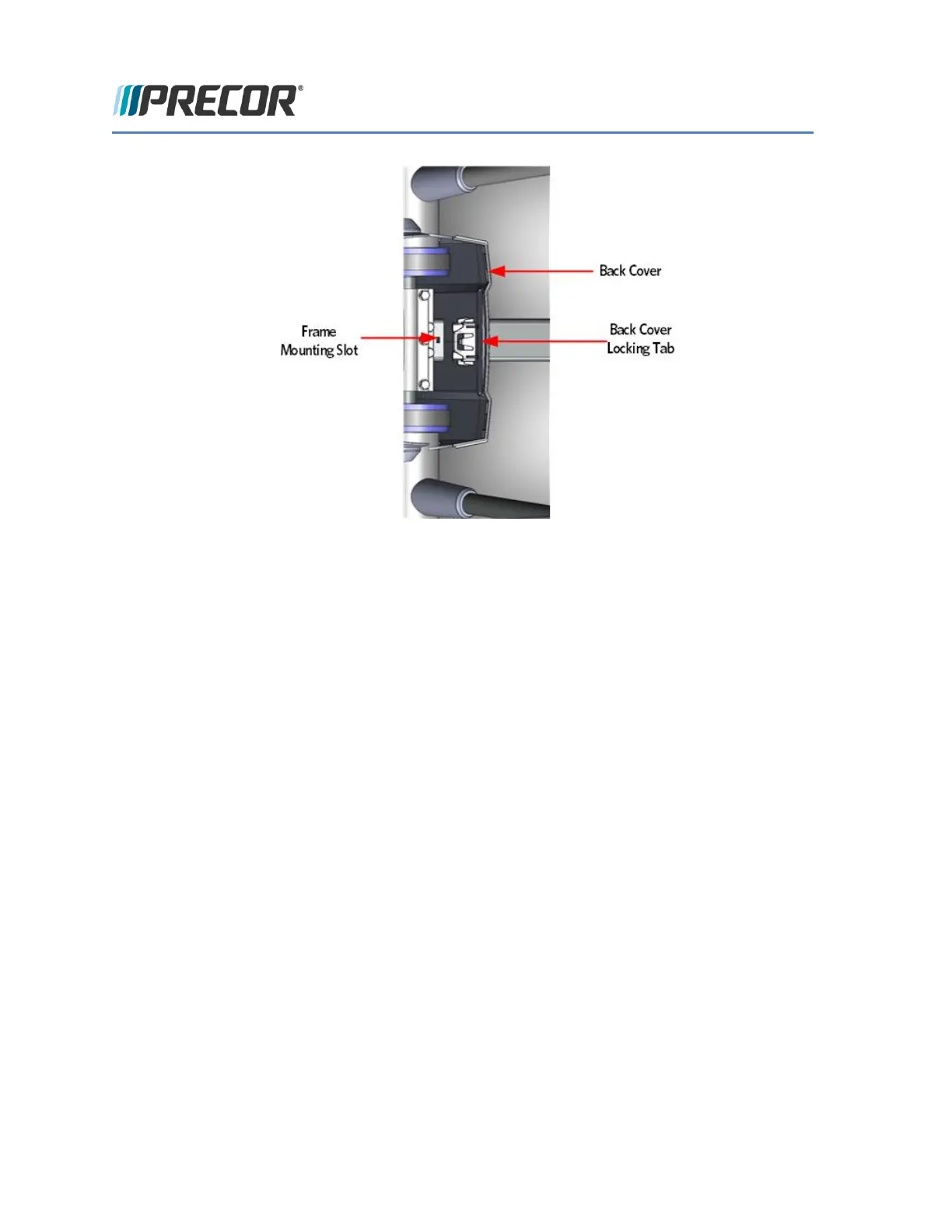

3 Push down on the back of the center beam cover until the locking tab of the cover has engaged with
mounting slot of the frame beam.
4 Replace the platform.
Front Cover Assembly
1 Guide the arm openings in the front cover around the arms of the AMT, taking care that the tabs at the
bottom corners of both openings are inside the two side covers. Then guide the front cover into place
until the latches on the side covers click into place.
2 Fasten the two #10 x ¾ inch screws at the bottom corners of the front cover. Tighten the screws
completely.
Upper Arm Cover Replacement
FIGURE 16: UPPER ARM COVERS
