13 Install the generator belt over the step up pulley and generator pulley.
14 Adjust the Generator pulley tension. Go to "Inspecting and Adjusting the Generator Belt Tension"
procedure.
15
16 Lift the stairarms and then thread the flat belts over the flat belt pulleys.
17 Select the QUICKSTART program and adjust the resistance up ▲ key until resistance level 10 is
displayed. Pedal the AMT for approximately one minute and then recheck the belt tension.

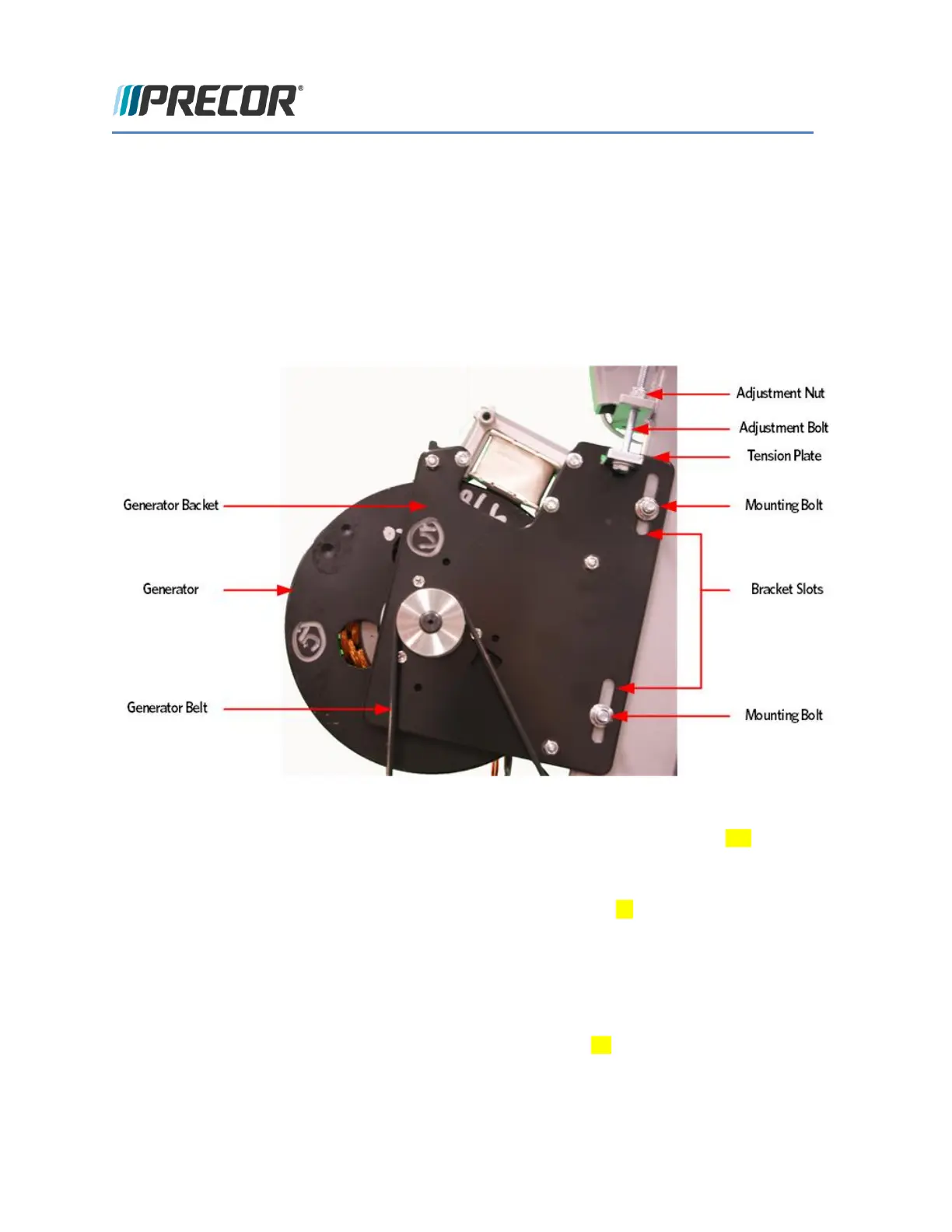

FIGURE 158: GENERATOR
18 The drive input belt tension should read approximately 120 ± 10 lbs and the generator belt tension
should read approximately 90 ± 10 lbs. See Drive Belt Gauge Instructions (on page 265) for attaining
maximum accuracy from the gauge.
19 Lift the stairarms and thread the flat belts through the pulleys.
20 Replace the covers as per procedure, Cover Replacement (on page 53).
Replacing the Crank Arm
Crank Arm Replacement Procedure
1 Remove covers as per procedure, Cover Replacement (on page XX).
2 Remove the tension from the inner flat belt pulleys by lifting up on the stairarms, pulling the flat belts off
the flat belt pulleys, and then gently setting the stairarm down.
