© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 102
16 Install the second 1/4-20X1 screw and shim, but do not fully tighten at this time.
Inside Flat Belt Routing
17 Route the flat belt over the top of the cam towards the back of the AMT and down, over the first flat belt
pulley, then under the second flat belt pulley to the front belt clamp. If the flat belts are not long enough
to route through the pulley's, skip the belt routing until the belt flat belt installation is completed

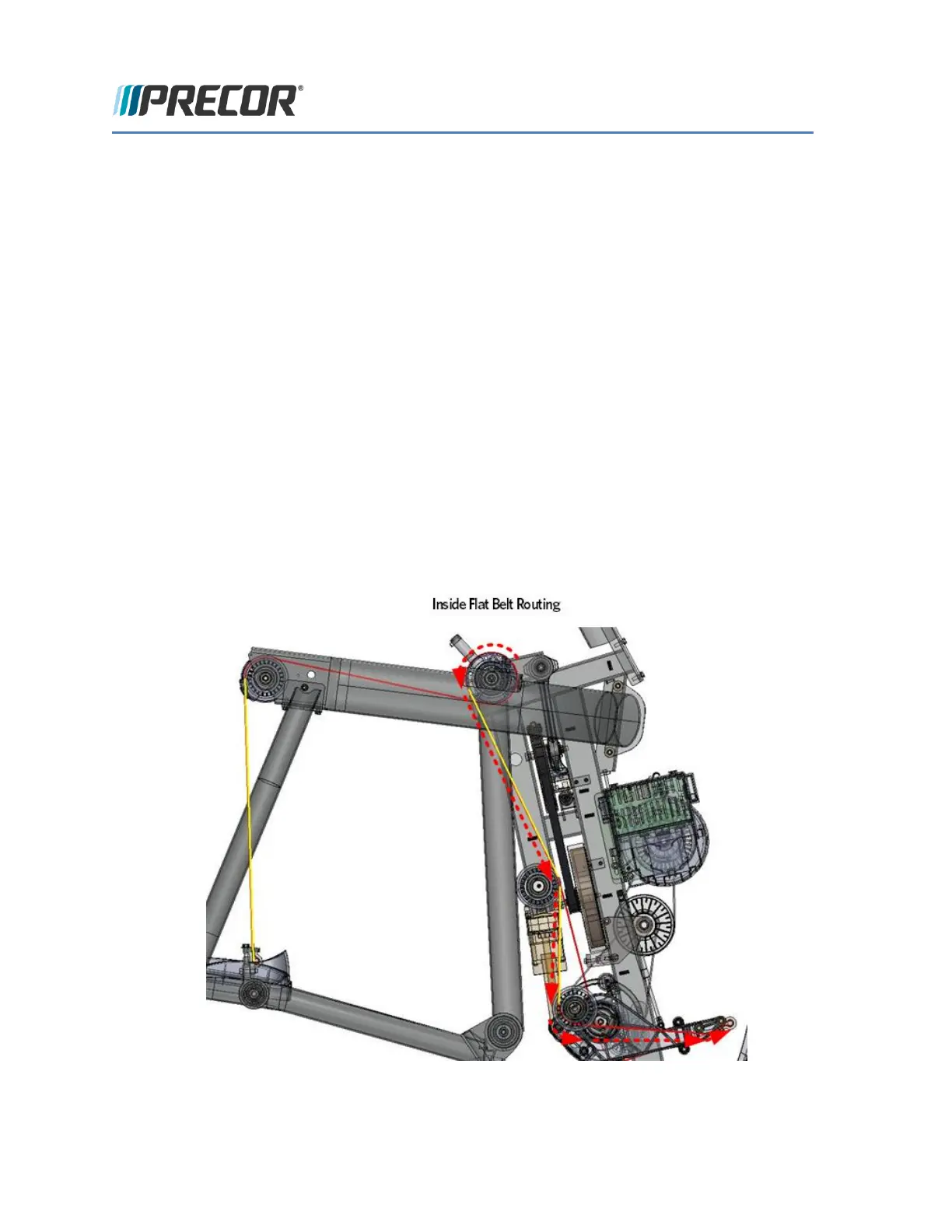

FIGURE 67: INSIDE FLAT BELT ROUTING
