Replacing the Lower Board
WARNING: Before continuing with this procedure, review the Warning and Caution statements listed
in Section One, Things You Should Know.
Removing the Lower PCA Cover
1 Remove the main body covers as per procedure, Cover Replacement section (see "Cover
Replacement" on page 53).
2 There are two interlocking pressure tabs located on each side of the lower PCA cover, push the two
locking tabs outward and pull up the bottom of the lower PCA cover.
3 Rotate the bottom of the lower PCA cover up until the two hooks of the cover disengage from the lower
PCA bracket.

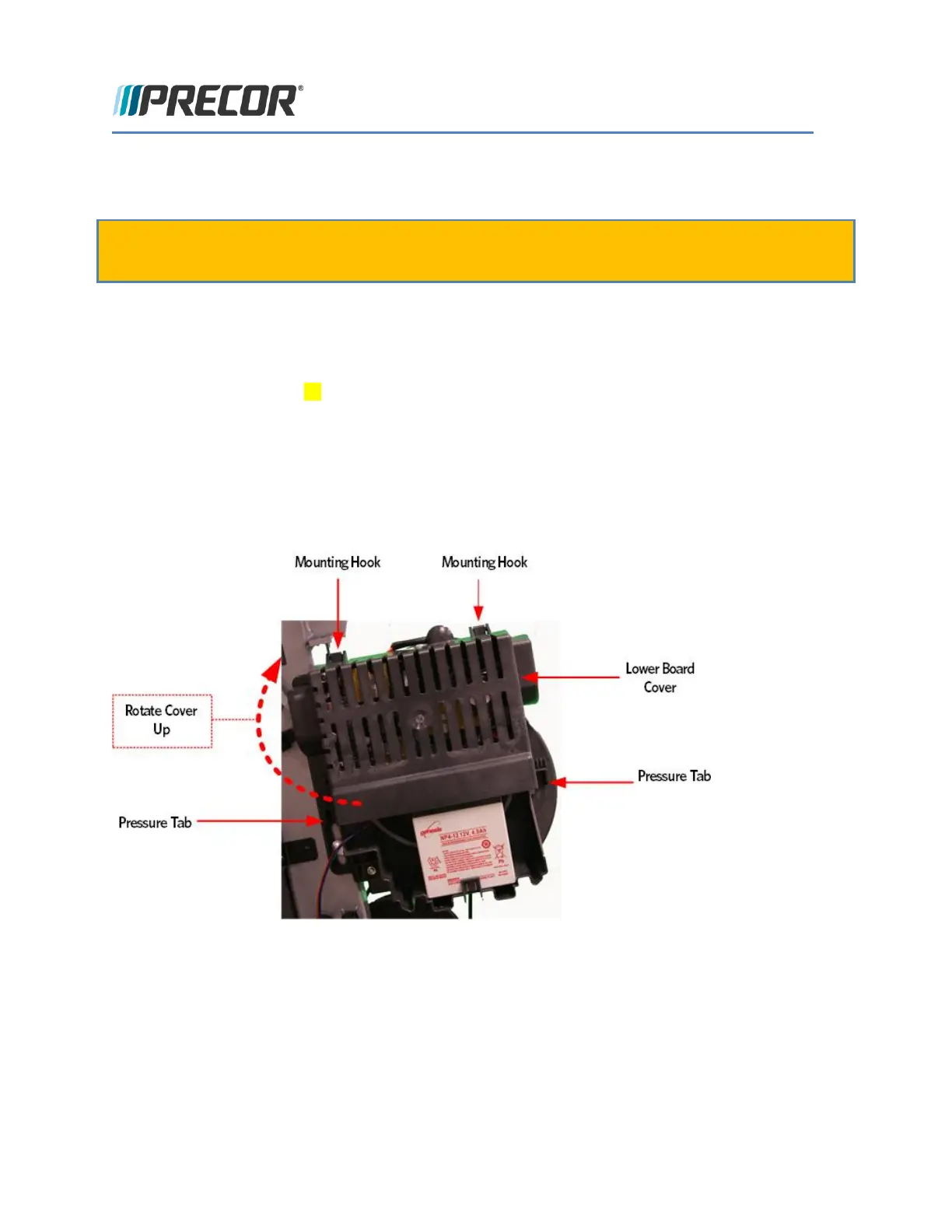

FIGURE 145: LOWER PCA COVER
Removing the Lower PCA
1 Attach the wrist ESD strap to your arm, and then connect the ground wire of the wrist strap to a grounding
spot on the AMT frame.
2 Disconnect the data cable, incline motor cable (Open Stride only), generator cable, load cable, stride
dial cable, battery cables, and vertical sensor cable from the lower PCA.
