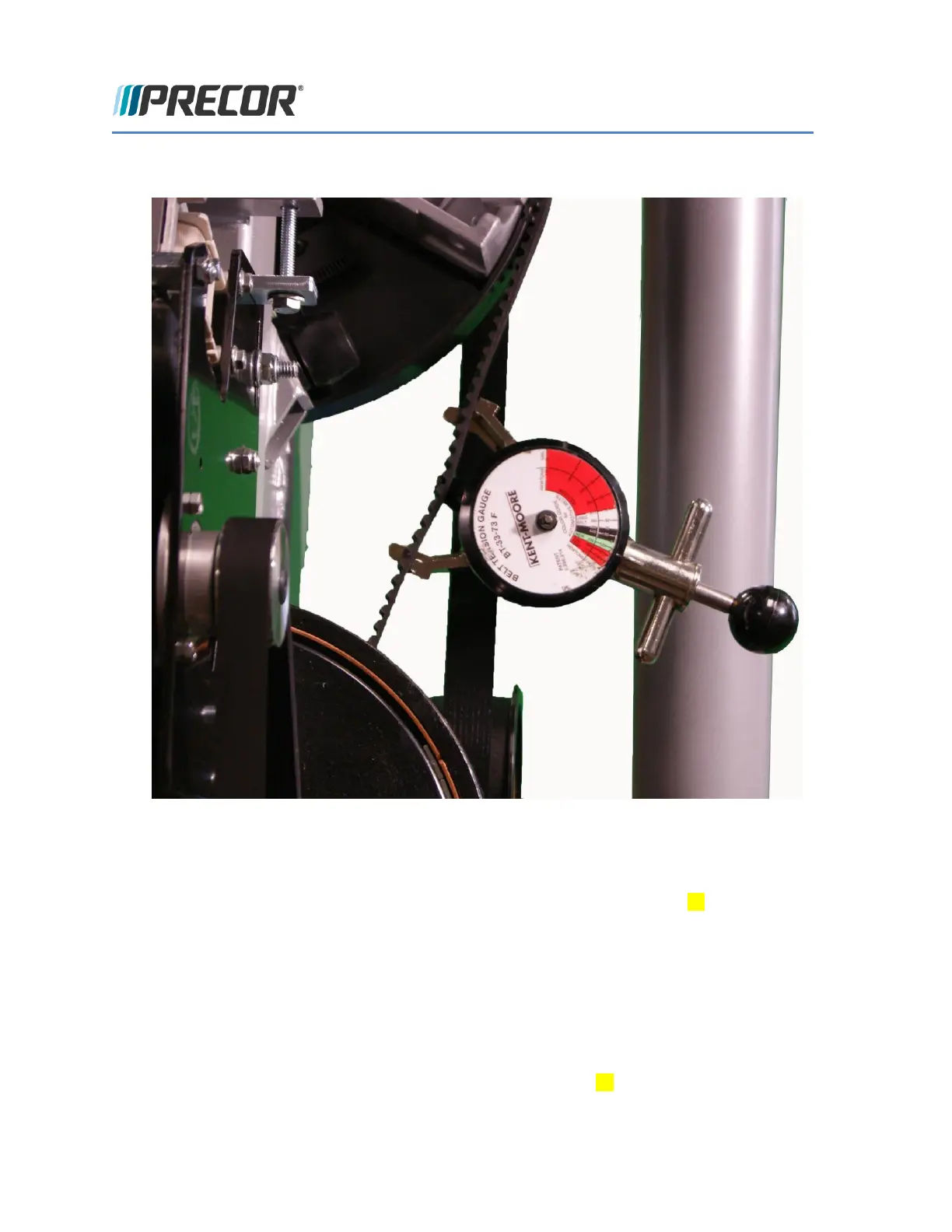

FIGURE 243: H-BRAKE BELT TENSION GAUGE
17 The belt gauge should read approximately 110-120 lbs. If the belt tension is significantly high or low the
belt tension may be adjusted by loosening or tightening the H-Brake adjustment bolt.
18 Replace the covers as described per procedure, Cover Replacement (on page 53).
Replacing the Gas Shock
Replacing the Gas Shock
1 Remove the covers per procedure, Cover Replacement (on page 53).
