© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 241

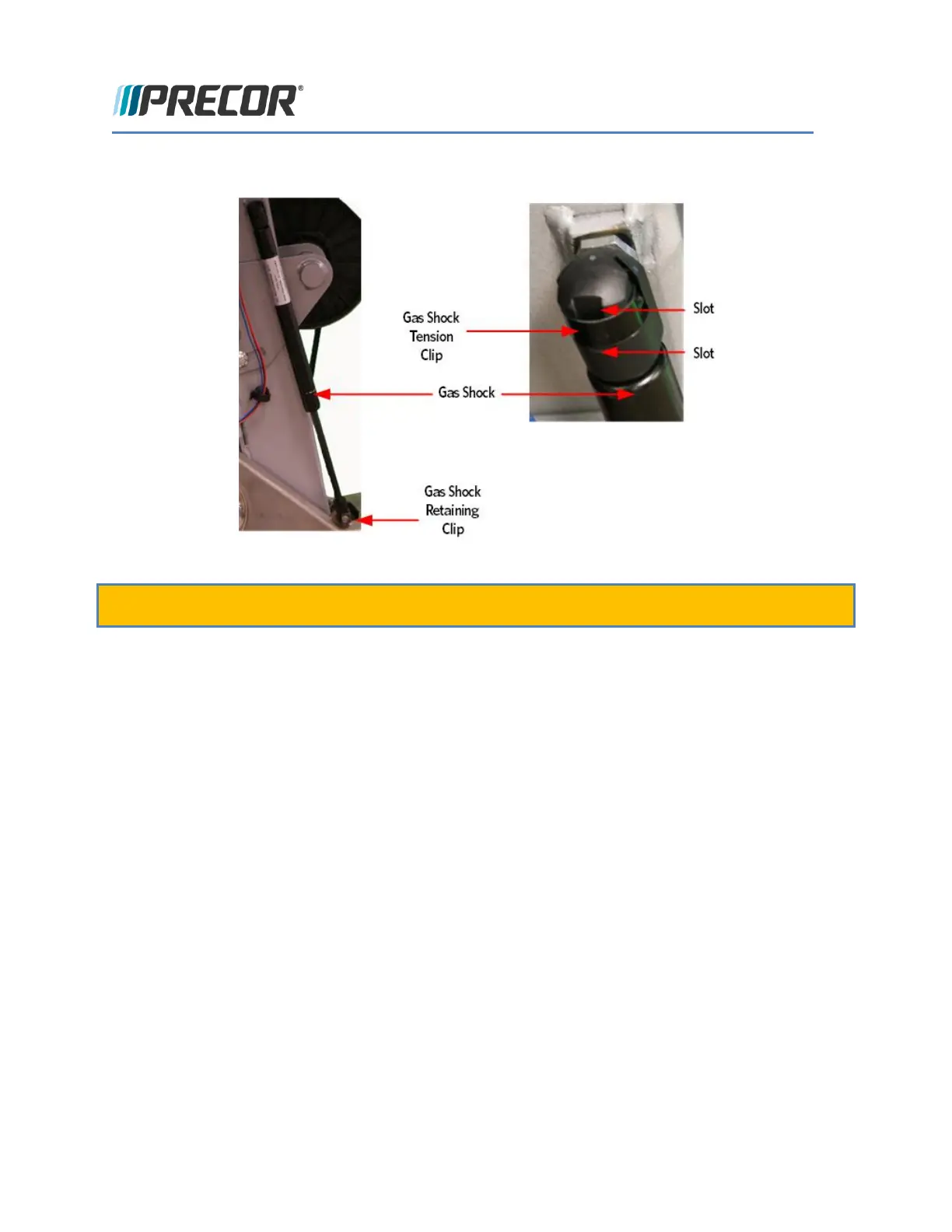

FIGURE 242: GAS SHOCK
Caution: It is recommended to have assistance available for following step(s).
9 With an assistant, lift the front of the Incline platform until the Incline tube mounting holes align with the
Incline platform mounting holes.
10 Replace the Incline motor mounting pin through the Incline tube and Incline platform and attach the hitch
pin.
11 Replace the wave washer and flat belt pulley, secure the flat belt pulley with the snap ring.
H-Brake Belt Installation
12 Apply a thin layer of AMSOIL GPOR1 synthetic polymeric grease along the cam clamp track.
13 Position one of the belt clamps over the cam so that the length of the belt is hanging down the left side
of the AMT and then slide the clamp onto the cam from right to left, until clamp hits the stop.
14 Feed the belt through the frame and under the H-brake pulley.
15 Slide the clamp onto the cam and fasten the clamps together using the H-Brake tension bolt, washers
and nut.
H-Brake Belt Tensioning
16 Place a belt gauge on the H-brake belt.
