3 Access the incline Lift Test portion of the Diagnostic Program, see Accessing the P30 Diagnostic
Software (on page Error! Bookmark not defined.), P80 Settings (on page Error! Bookmark not
defined.).
4 With the lift incline number displayed, set the incline to level 2 using the STRIDE HEIGHT up ▲ and
STRIDE HEIGHT down ▼ keys
5 Rotate the incline motor tube on the incline motor drive screw until the measurement between the top
of the incline nut and the end of the incline motor drive screw is 1-1/4 inches.
Note: When rotating the incline motor tube, do not allow the incline motor drive screw to rotate. If
the incline motor drive screw rotates, the lift level number will change. The lift level number must be
2 and the physical measurement must be 1-1/4 inches for the calibration to be correct.

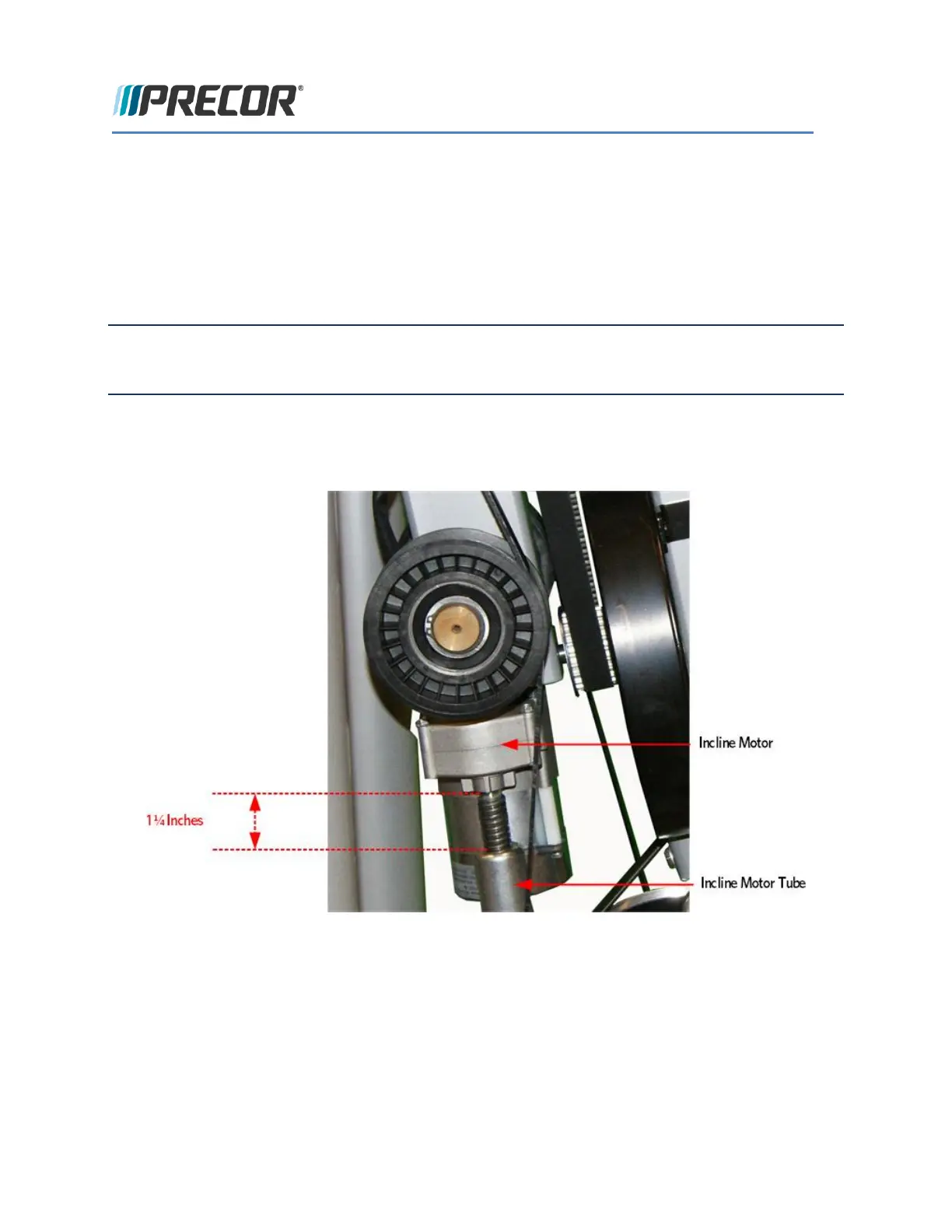

FIGURE 241: INCLINE MOTOR CALIBRATION MEASUREMENT
Gas Shock Installation
6 Rotate the gas shock up.
7 Adjust the height of the gas shock by lowering or raising the front of the Incline platform until the gas
shock and the upper mounting stud align.
8 Press the gas shock onto the mounting stud and secure the gas shock to the upper mounting stud by
pushing in on the tension clip.
