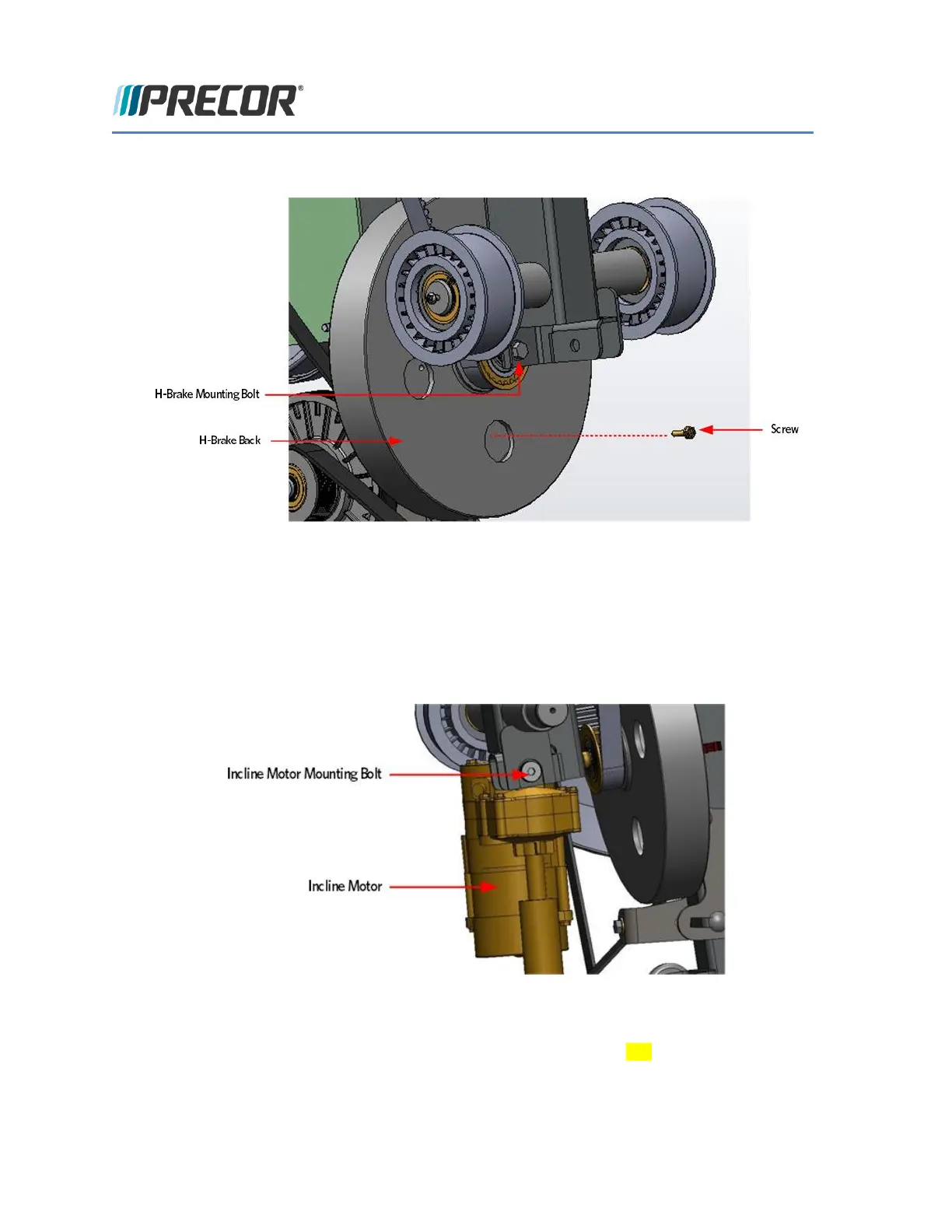

FIGURE 239: H-BRAKE DRUM - UNITS BUILT AFTER 10-1-1012
Incline Motor Installation
1 Attach the replacement Incline motor to the frame using the 3/8-16 mounting bolt.
FIGURE 240: INCLINE MOTOR MOUNTING
2 Connect the incline motor cable connector to the lower PCA and replace the lower PCA cover as per
procedure, Replacing the Lower PCA and Battery Bracket (on page 164).
