© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 109
4 Remove the two screws that secure the grip to the upper arm, there is one screw on each side of the
upper arm.

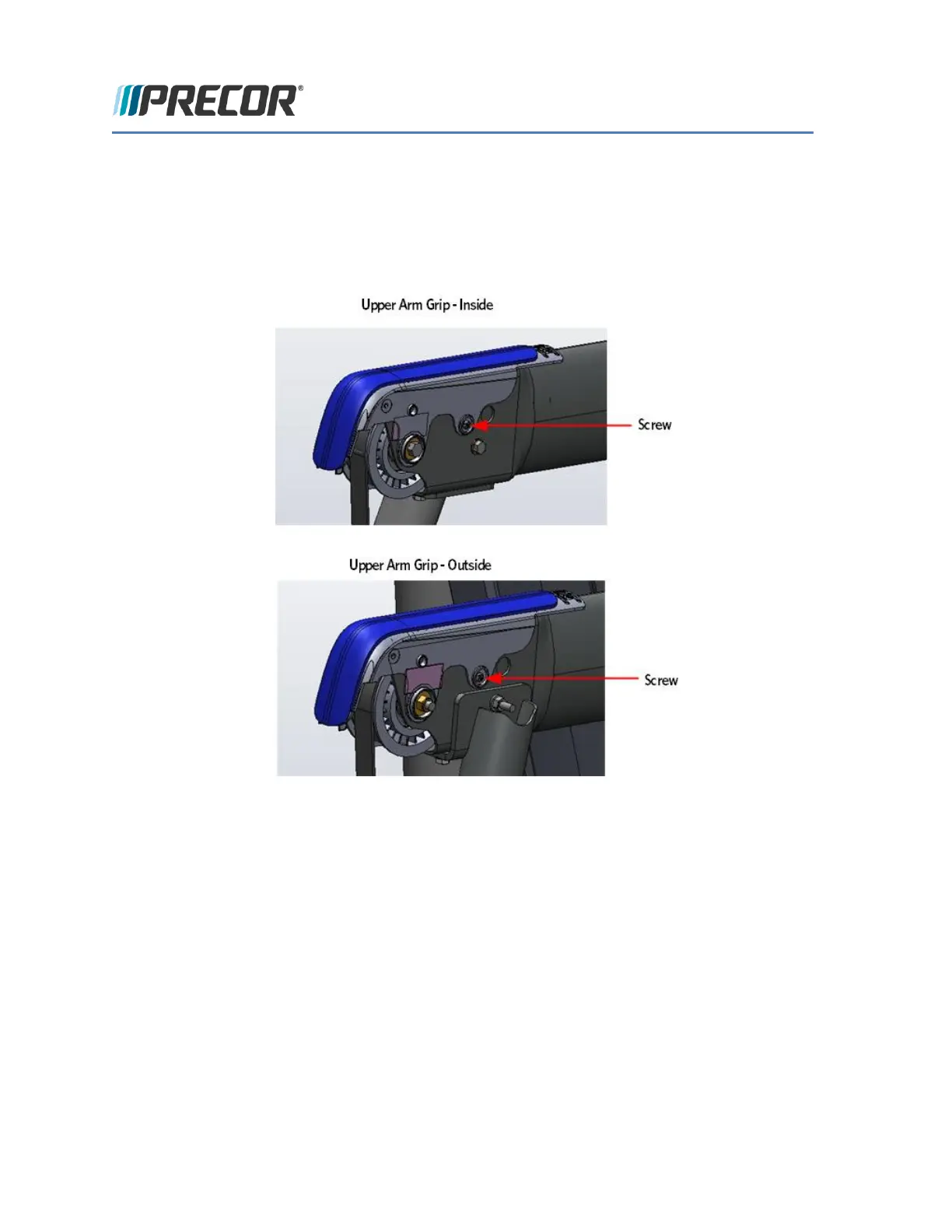

FIGURE 74: UPPER ARM GRIP SCREW LOCATIONS
5 Grasp the grip connecting ring located on each side of the upper arm, pull up and over the flat belt pulley
mounting bolt to remove the grip.
FIGURE 75: UPPER ARM GRIP REMOVAL
