2 The belt guard assembly is two interlocking halves and needs to be separated before it can be removed
from flat belt:
a) Lower the belt guard down just below the upper arm.
b) Squeeze the belt guard near the base to release locking tabs and rotate the two halves down.
c) Taking care to not lose the rollers inside the belt guard, pull the two belt guard halves away from
each other to separate.
3 Repeat the process for the remaining belt guard.

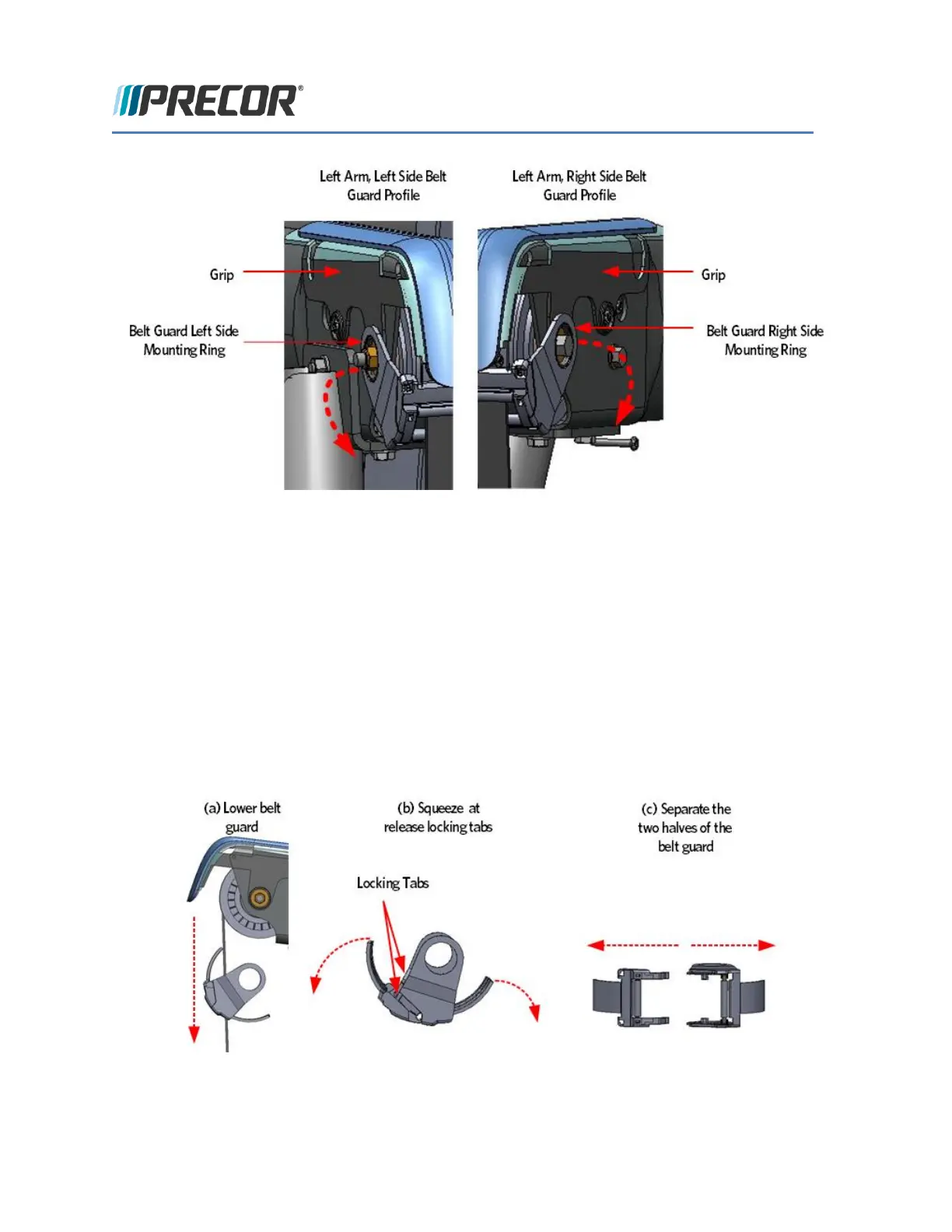

FIGURE 73: BELT GUARD REMOVAL
