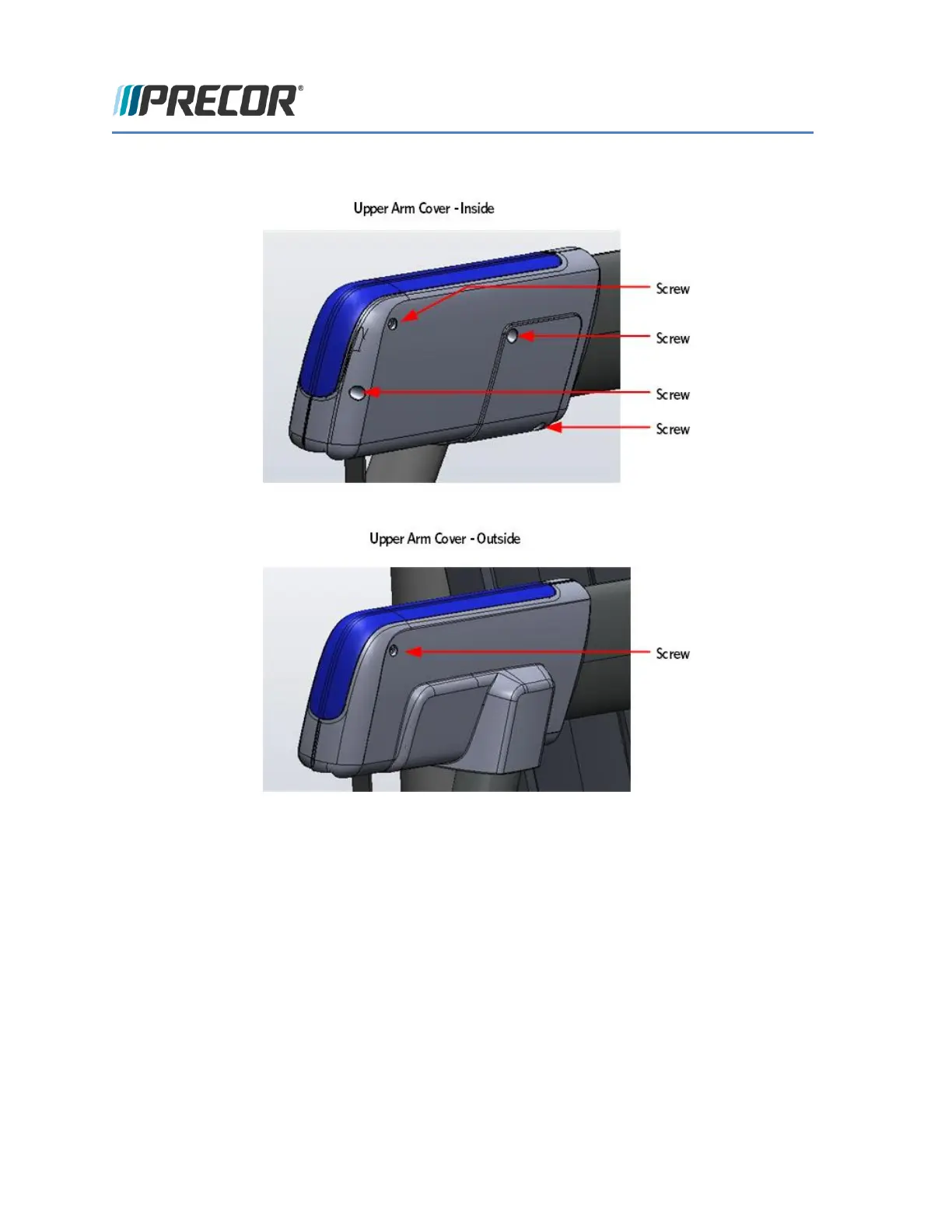

FIGURE 71: UPPER ARM COVER SCREW LOCATIONS
Belt Guard Removal
1 Grasp the belt guard mounting rings located on each side of the upper arm. Gently pull out and away
from the grip connection rings just enough to extend past the mounting bolt.
FIGURE 72: BELT GUARD AND UPPER ARM
