© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 74

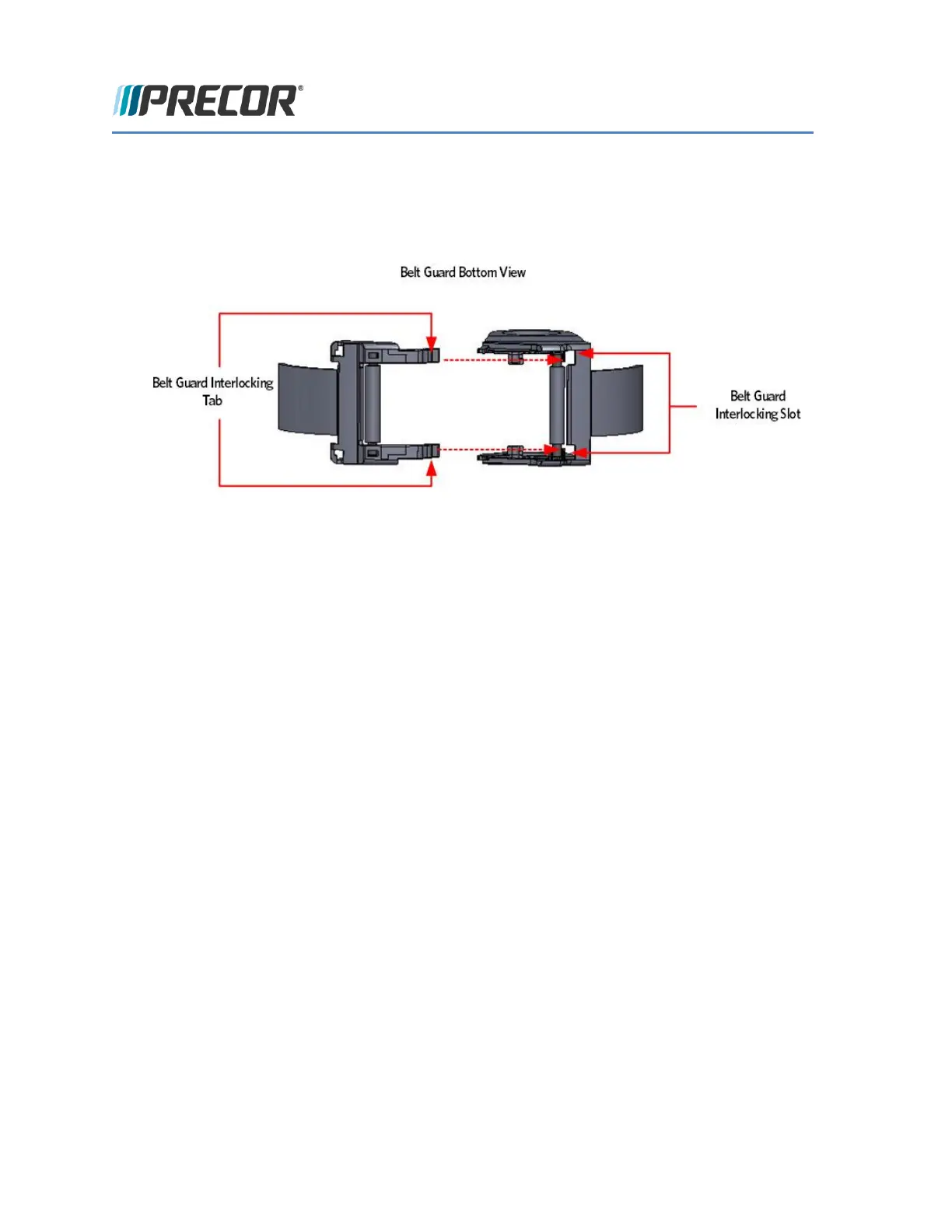

FIGURE 32: BELT GUARD INTERLOCKING TABS AND SLOTS
13 Grasp each belt guard mounting ring, lift the belt guard into position over the upper arm mounting bolts,
and then secure each mounting ring to the connection ring.
14 Replace the upper arm covers as per procedure, Upper Arm Cover Replacement (on page 61).
Replacing a Flat Belt Terminal
Flat Belt Terminal Replacement Procedure
Rear Flat Belt Terminal Cover Removal
1 Remove the two #10-24 X 1.25 screws that secure the flat belt terminal covers to the flat belt terminal,
remove the outside terminal cover.
2 Rotate the top of the inside terminal cover down until it is below the stairarm pedal, pull to remove.
3 Repeat the process for the remaining rear flat belt terminal cover.
FIGURE 33: FLAT BELT TERMINAL COVERS
