© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 75
4 Remove the tension from the inner flat belt pulleys by lifting up on the stairarms, pulling the flat belts off
the flat belt pulleys, and then gently setting the stairarm down.
5 Remove the flat belt terminal stop bolt and washer.
6 Remove the flat belt terminal adjustment bolt and washer.

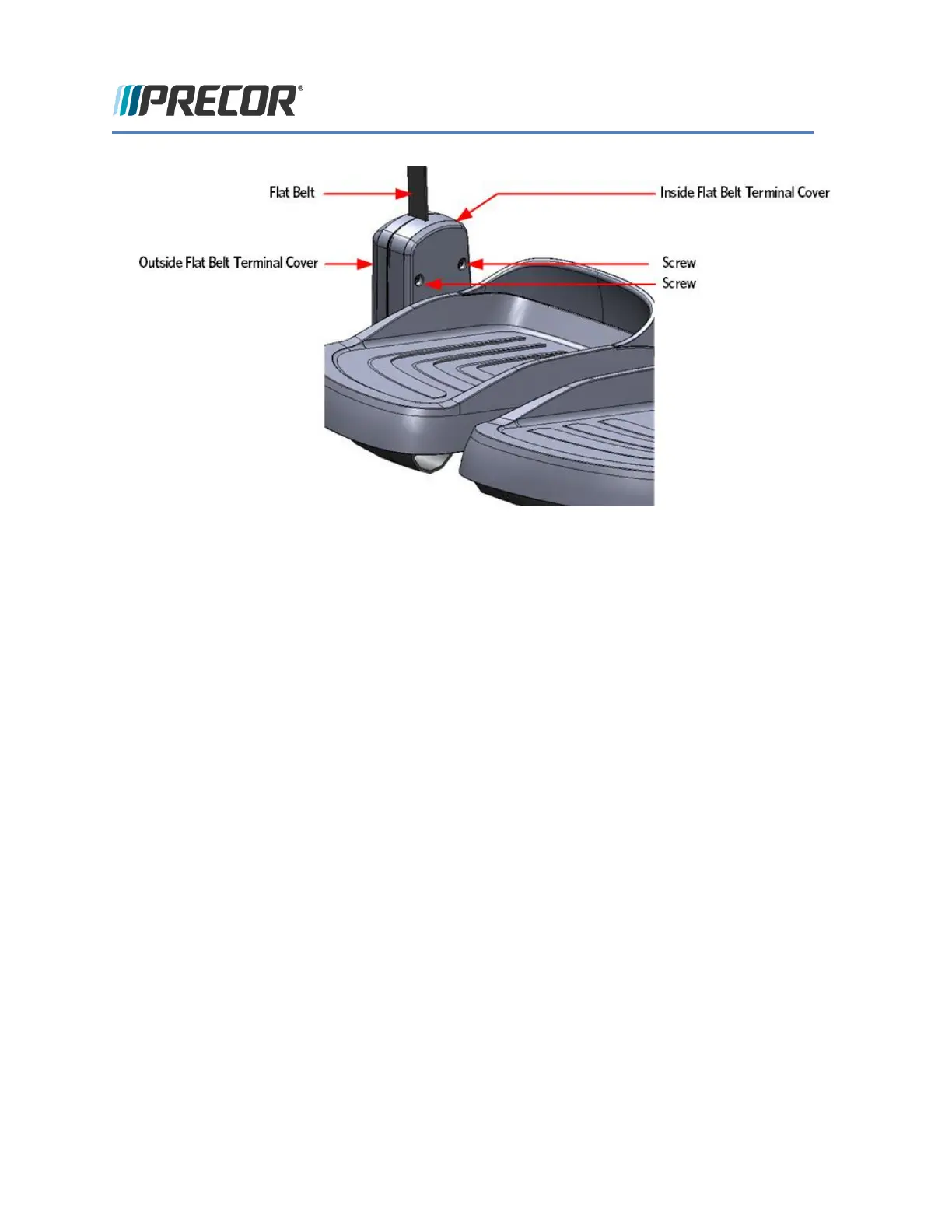

FIGURE 34: FLAT BELT CLAMP AND FLAT BELT TERMINAL
