© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 177
5 Replace the wave washer and flat belt pulley onto the crank arm shaft and secure with the snap ring.
Make sure the snap ring is fully seated into the shaft groove.

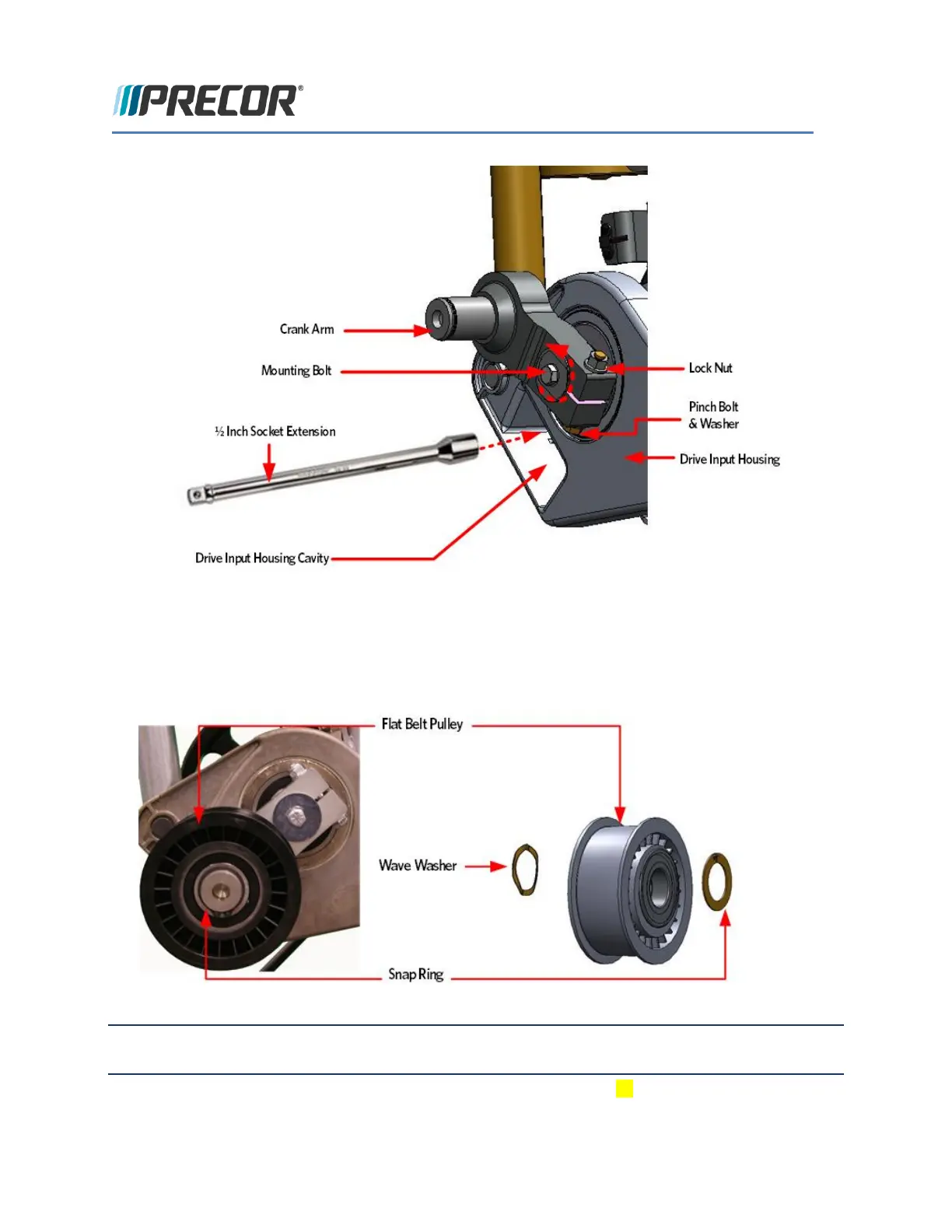

FIGURE 161: CRANK ARM FLAT BELT PULLEY
Note The position of the flat belt pulley on the crank arm and the flat belt pulley on the input pulley. When
the crank arm is replaced, the flat belt pulleys must be positioned so that they are 180 degrees opposing.
6 Replace the covers as per procedure, Cover Replacement (on page 53).
