12 Lift the stairarms and then thread the flat belts over the flat belt pulleys.
Adjusting the Stairarm Pedal Height
13 Loosen, but do not remove the stairarm adjustment stop bolt.
14 Push one of the stairarm pedal's down to its lowest level. Measure the distance from the bottom of the
stairarm tube to the top of the center beam frame, the distance between the stairarm tube and the center
beam frame should be 3-7/8 inches.

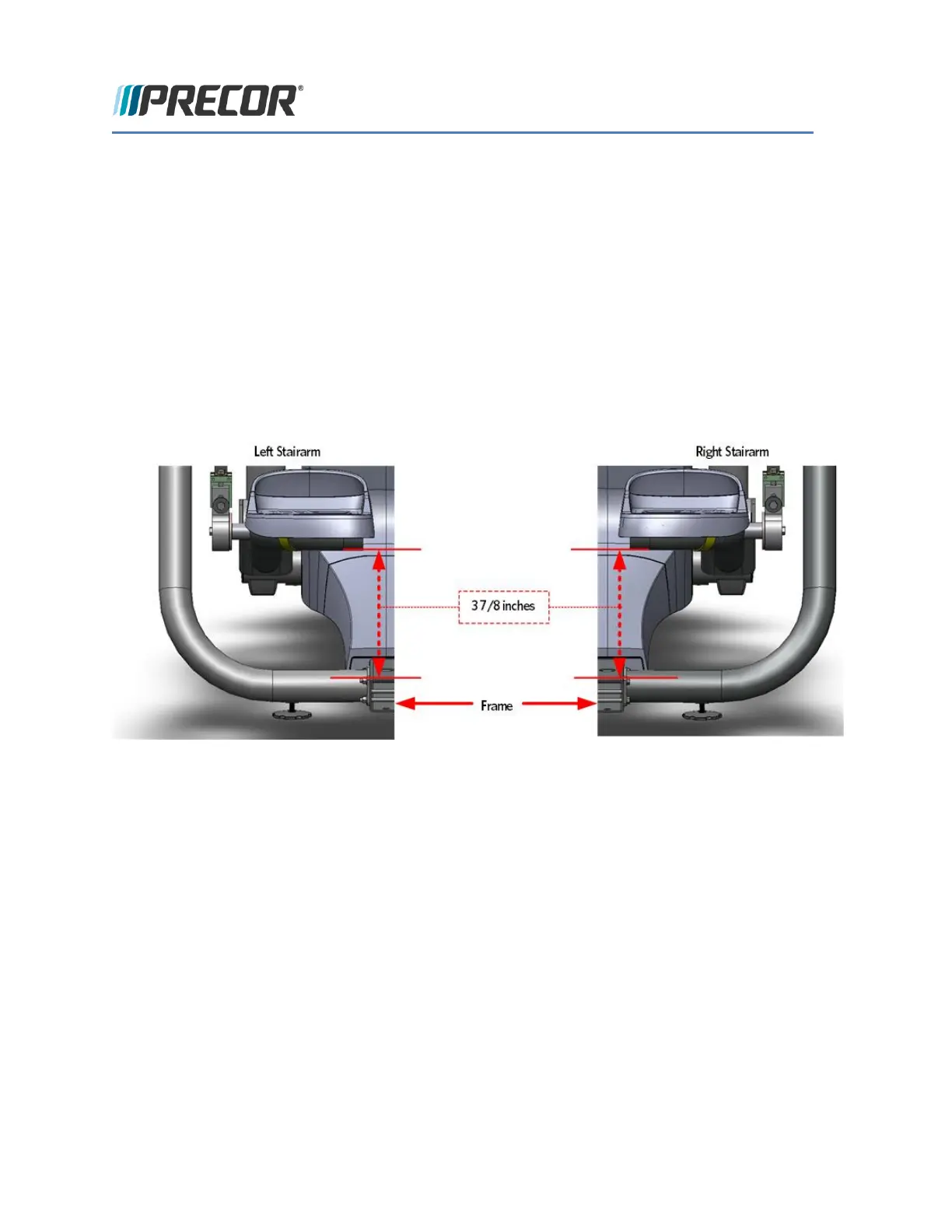

FIGURE 36: STAIRARM HEIGHT MEASUREMENT
15 If the measurement is too low or too high, tighten or loosen the adjustment bolt until the 3-7/8 inch
measurement is achieved.
