© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 110

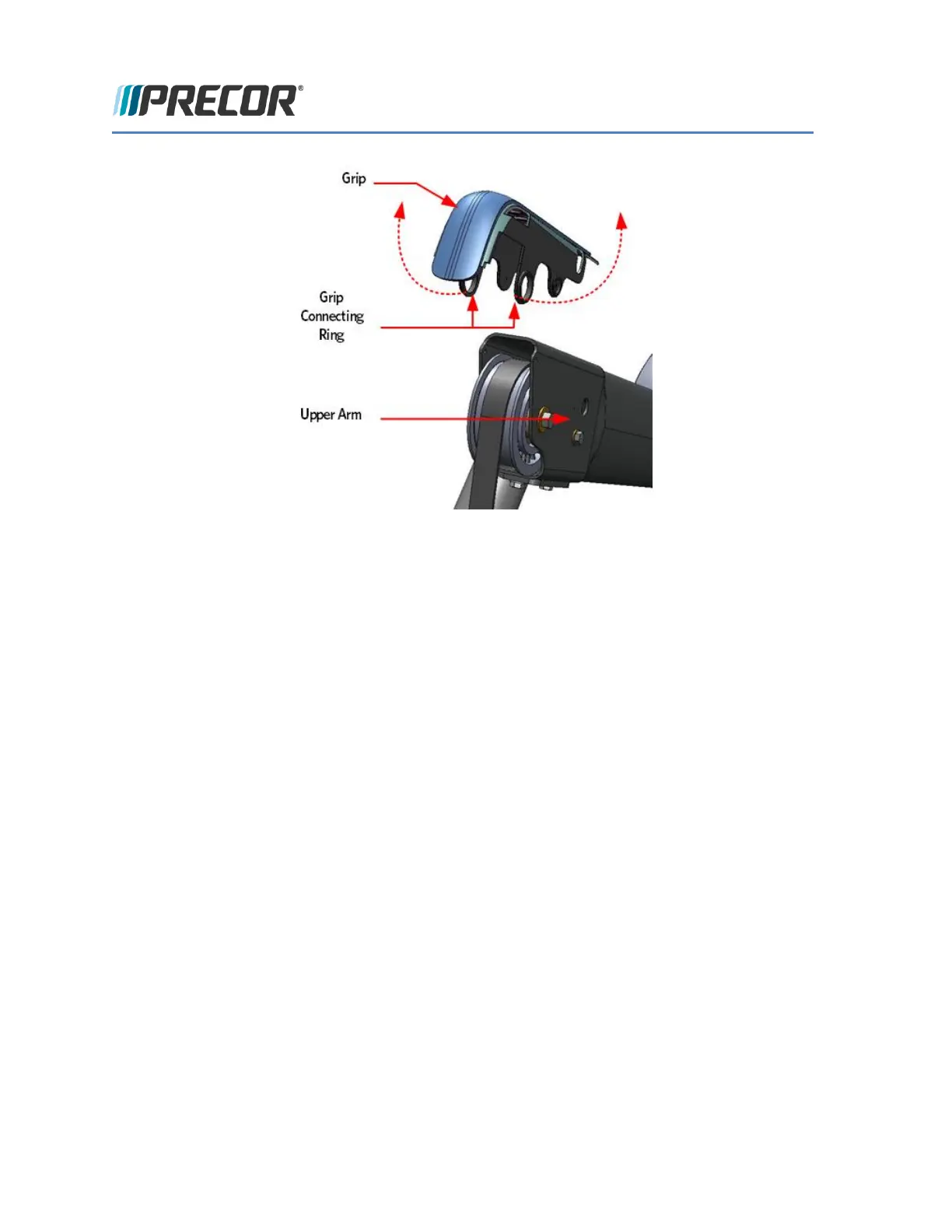

6 Repeat the process for the remaining upper arm grip.
Rear Flat Belt Terminal Cover Removal
7 Remove the two #10-24 X 1.25 screws that secure the flat belt terminal covers to the flat belt terminal,
remove the outside terminal cover.
8 Rotate the top of the inside terminal cover down until it is below the stairarm pedal, pull to remove.
9 Repeat the process for the remaining rear flat belt terminal cover.
FIGURE 76: FLAT BELT TERMINAL COVERS
