© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 243
2 Remove the tension from the inner flat belt pulleys by lifting up on the stairarms, pulling the flat belts off
the flat belt pulleys, and then gently setting the stairarm down.
Gas Shock Removal
3 Release tension from the top of the gas shock by pushing a # 1 flat top screw driver in the slot under
the tension clip. Do not completely remove the retaining clip as it is difficult to reinstall.
Tip: If the incline motor is jammed at full elevation, remove the lower retaining clip to facilitate the gas shock
removal.
4 Using another flat head screw driver as a pry bar, place the screw driver head between the frame and
the top of the gas shock and pry the shock off the upper mounting stud.
5 Rotate the gas shock down and out of the way of the incline motor.

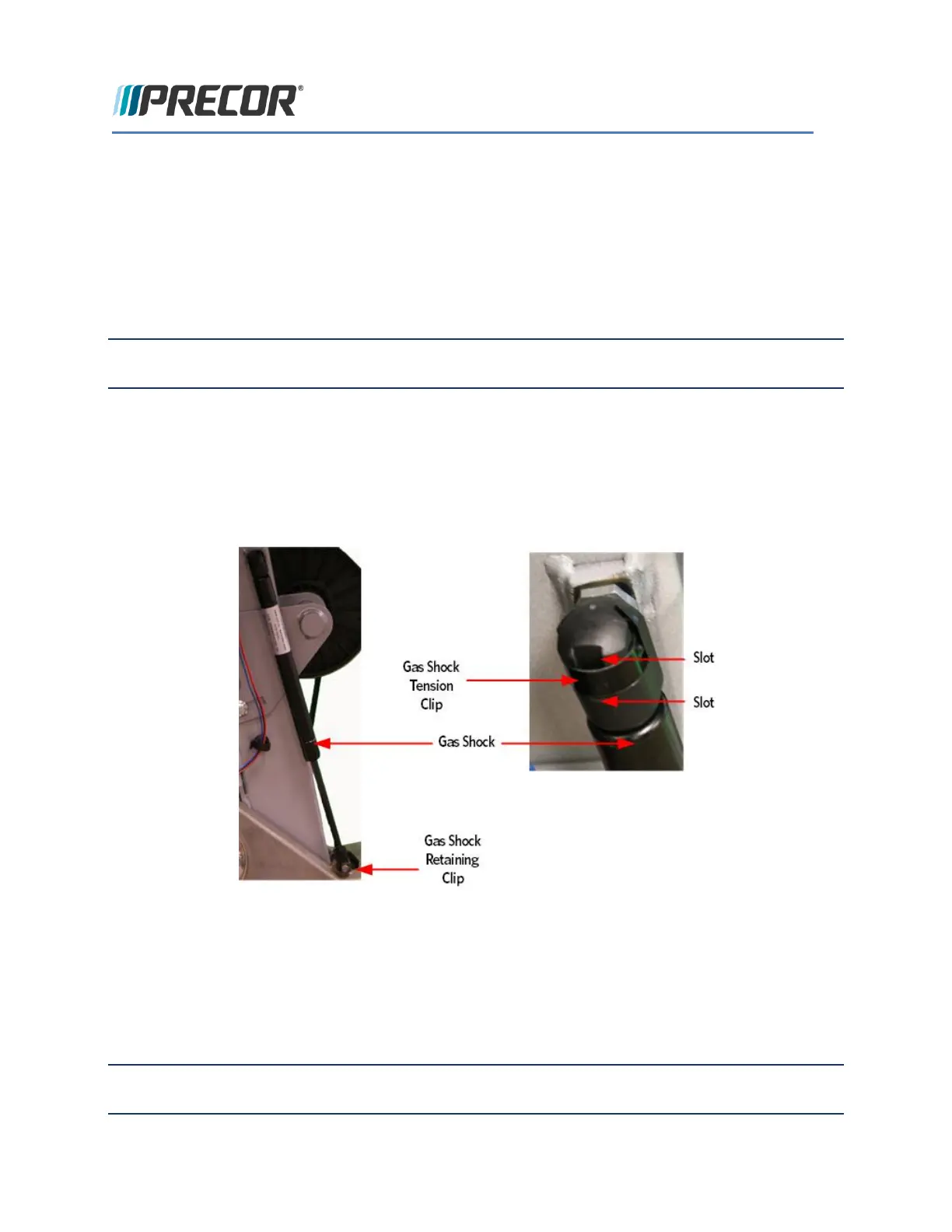

FIGURE 244: GAS SHOCK
Disconnecting the Incline Motor
6 Remove the hitch pin from the Incline motor mounting pin.
7 Remove the Incline motor mounting pin. If the Incline is jammed or has excessive pressure on the pin,
it may be necessary to drive the pin out of the Incline motor tube and Incline platform using a punch and
rubber mallet.
Note: Ensure the Incline tube and Incline screw do not turn after the Incline tube is free from the Incline
platform. Turning the Incline tube or screw will cause the Incline motor to become out of calibration.
