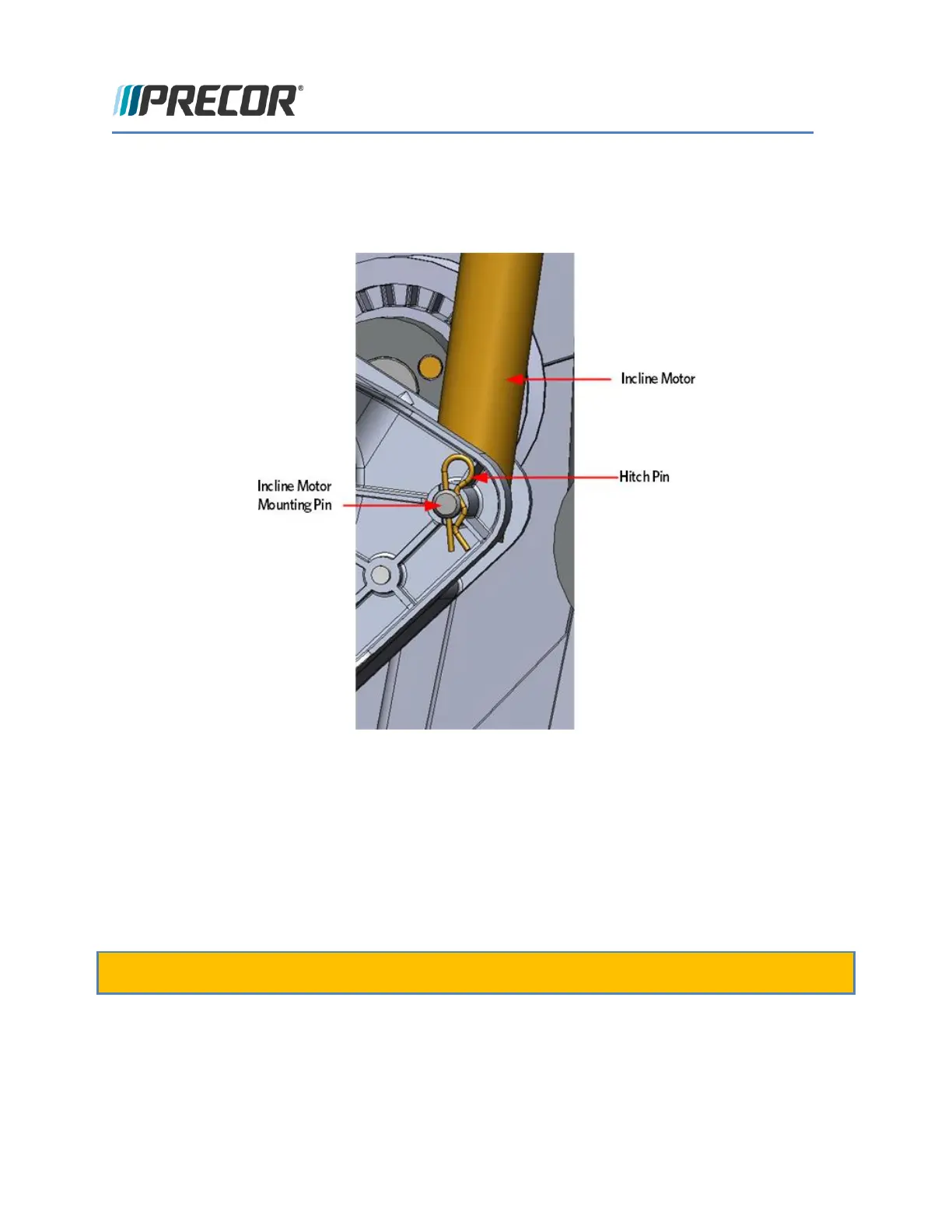

FIGURE 245: INCLINE MOTOR HITCH PIN AND MOUNTING PIN
Gas Shock Installation
8 Secure the bottom of the replacement gas shock to lower mounting stud with retaining clip removed in
step 5.
9 Adjust the height of the gas shock by lower or raising the front of the Incline platform until the gas shock
and the upper mounting stud align.
10 Press the gas shock onto the mounting stud and secure the gas shock to the upper mounting stud by
pushing in on the tension clip.
Caution: It is recommended to have assistance available for the following step(s).
11 With the assistance, lift the front of the Incline platform until the Incline tube mounting holes align with
the Incline platform mounting holes.
12 Replace the Incline motor mounting pin through the Incline tube and Incline platform and attach the hitch
pin.
13 Lift the stairarms and thread the inside flat belts through the flat belt pulleys.
To Next Page
