© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 138

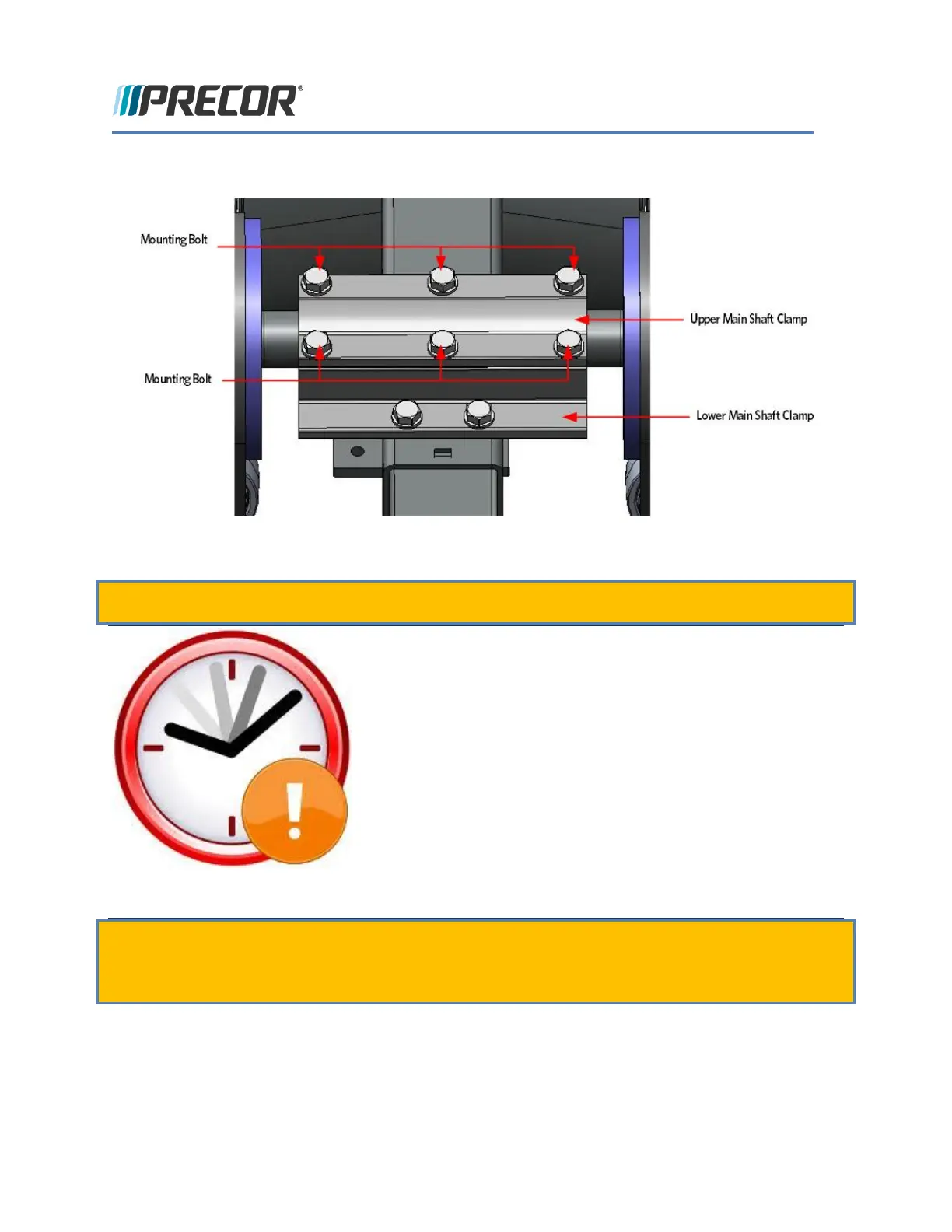

FIGURE 112: MAIN SHAFT CLAMP BOLTS
Caution: It is recommended to have assistance available for the following step(s).
Time Saver Tip: When installing the replacement flat belt, tape the end
of the replacement belt to the old flat belt at the cam side and then pull the new belt through the upper arm
as the old belt is removed.
If the belt has already been removed, you can use a fish tape or coat hanger to pull the belt through
the upper arm. Ensure the flat belt is routed over the top of any hardware that may be crossing the
inside of the upper arm.
17 With assistance, lift the front arm and flat belts out of the lower main shaft clamp and upper arm.
18 Remove the other front arm and flat belts.
