© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 137

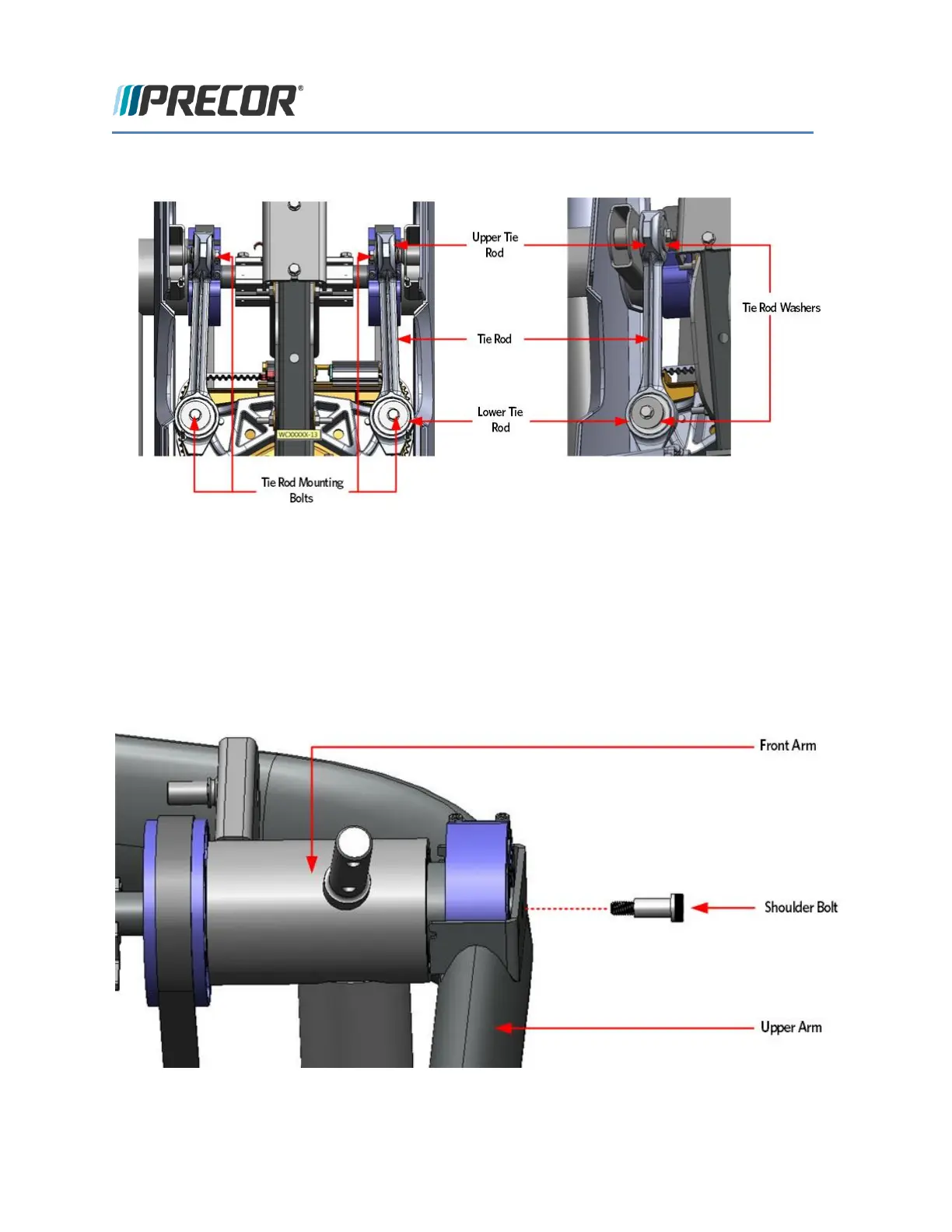

FIGURE 110: TIE RODS
Front Arm Removal
15 Remove the shoulder bolts that secures the outside cam tubes to the upper arms. Note: This step must
be performed before the main shaft clamp is removed, otherwise the shaft will rotate when the bolt is
turned and you will not be able to be remove the bolt.
FIGURE 111: FRONT ARM MOUNTING BOLT
16 Remove the six bolts that secure the upper main shaft clamp to the lower main shaft clamp. Remove
the top main shaft clamp.
