© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 136
Stairarm Removal
10 Place the shaft of a Philips screw driver into the drain hole on the bottom of the front arm. Rotate the
front arm bearing by turning the outside mounting bolt that secures the front arm to the stairarm until the
screw driver engages into the bearing and locks it. You may have to rotate the bearing one full turn to
align the bearing lock hole with drain hole.
11 Once the screwdriver has locked the bearing preventing further rotation, fully remove the inside and
outside mounting bolts. Remove the stairarm.
12 Repeat the steps for the remaining stairarm.

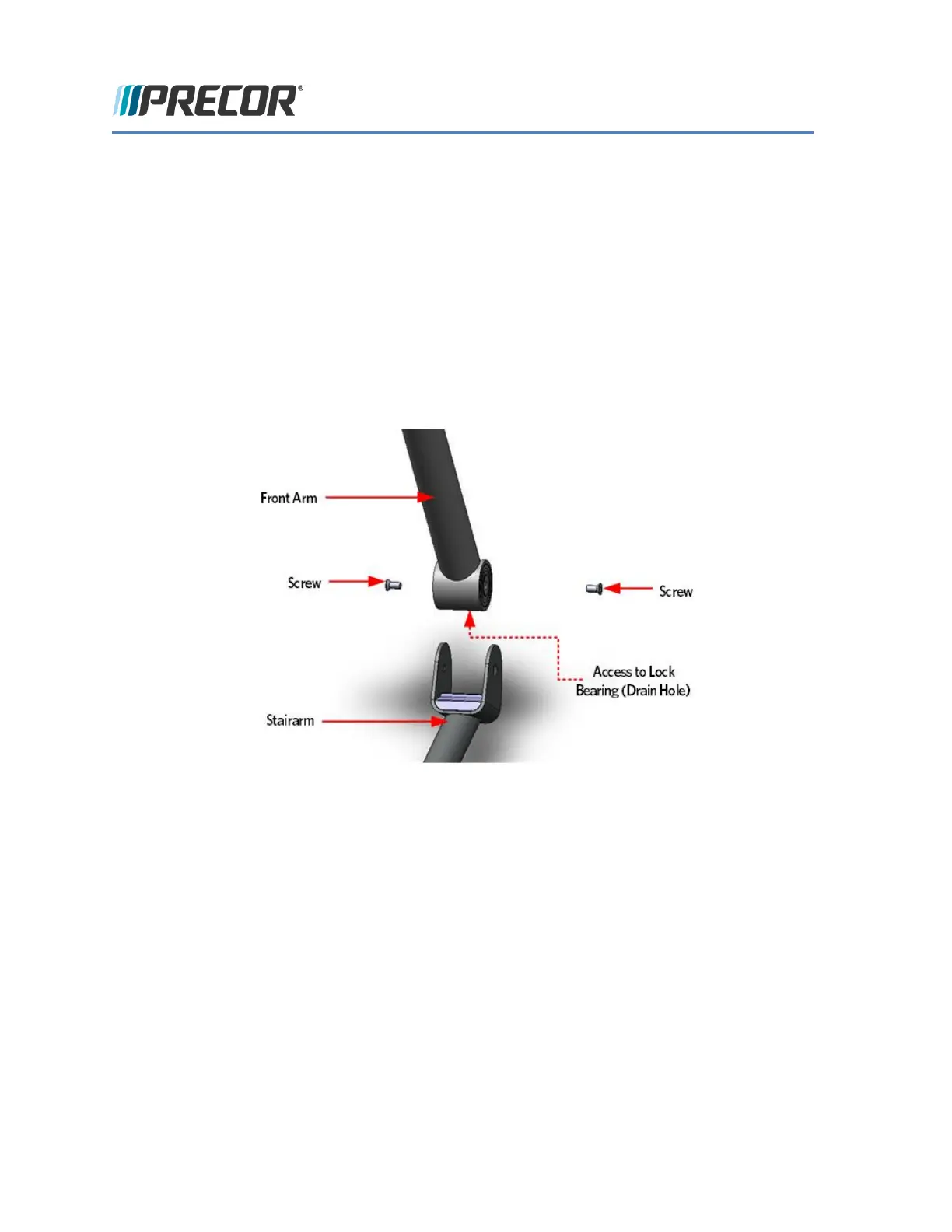

FIGURE 109: STAIRARM AND FRONT ARM SCREW LOCATIONS
13 Remove the vertical handle bars.
Tie Rod Removal
14 Remove the tie rod mounting bolts and washers that secure each upper tie rod end to the front arm
assemblies.
