8 Slide out the upper arm pulleys, the two spacers, and the pulley shaft from the upper arms.

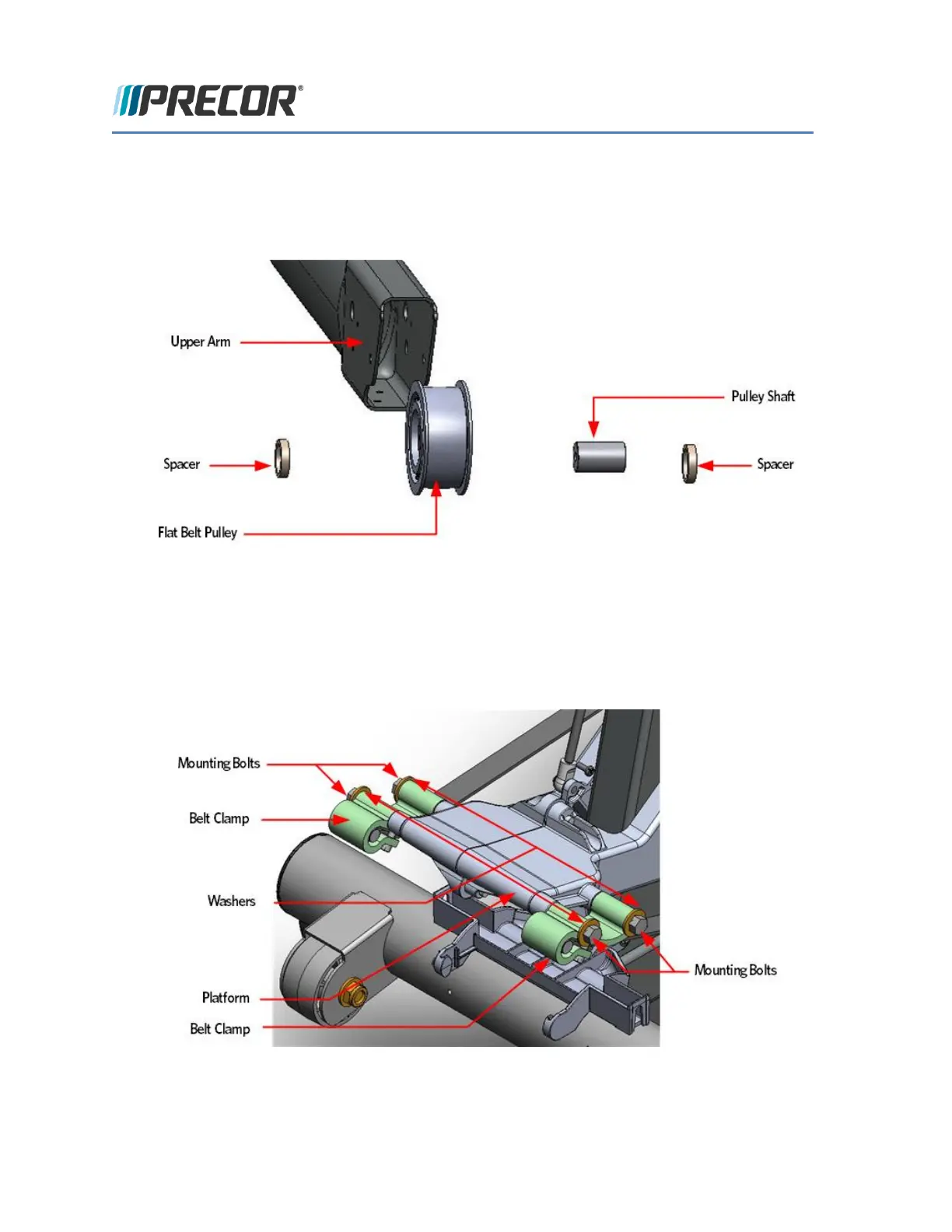

FIGURE 107: UPPER ARM FLAT BELT PULLEY REMOVED
Front Flat Belt Terminal Removal
9 Remove the bolts and washers that secures the front flat belt clamps to the lift platform.
FIGURE 108: FRONT BELT CLAMPS
