© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 113

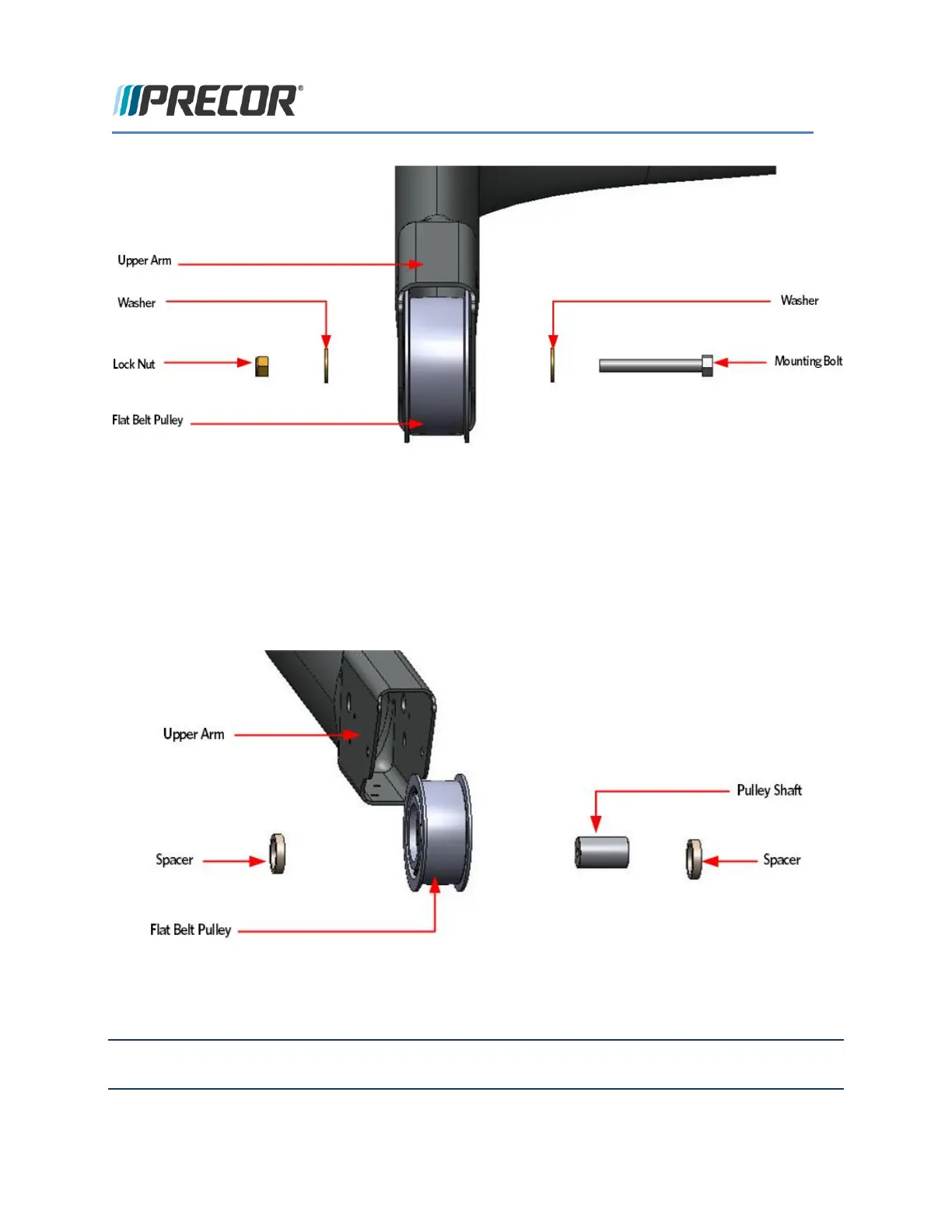

14 Slide out the upper arm pulley, the two spacers, and the pulley shaft from the upper arm.
15 Repeat the process for the remaining flat belt pulley.
FIGURE 80: UPPER ARM FLAT BELT PULLEY REMOVED
Flat Belt Removal - Upper Arm Cam
Note: Any time the flat belt terminal screws are removed from the flat belt clamp or cams, the screws
must be discarded and replaced with new screws.
16 Remove and discard the two 1/4-20X1 screws and shims that secure the flat belt to the cam clamp.
